Attributes

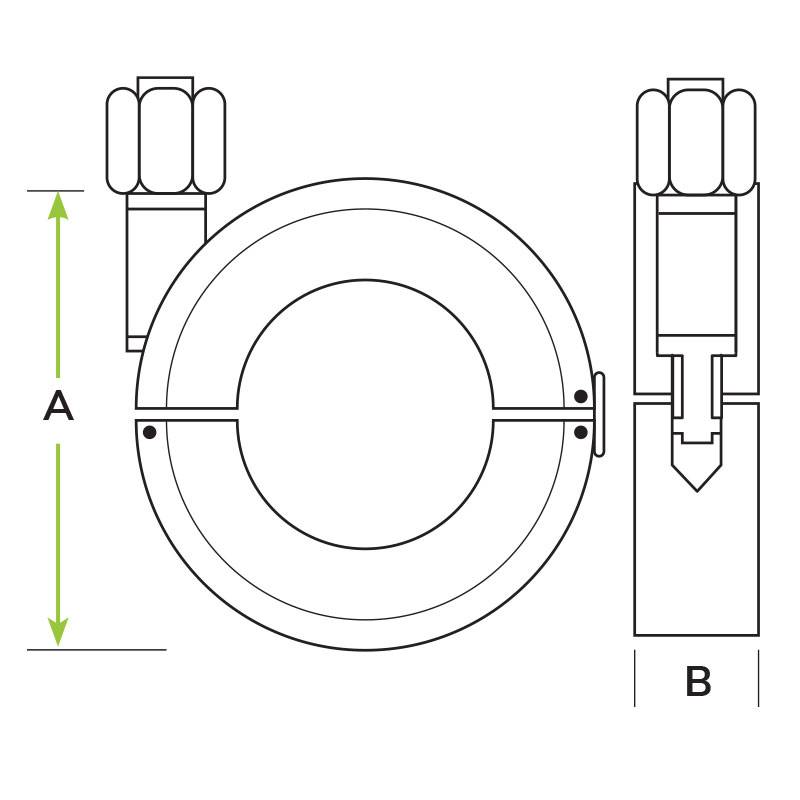

A 2.94
B 0.63
Tube Size 1.5
3D CADLogin
DrawingLogin

QF40-CLMP-SS

QF40 CNC Stainless Steel Clamp

$75.00

Available on backorder

Part ID: 4050017

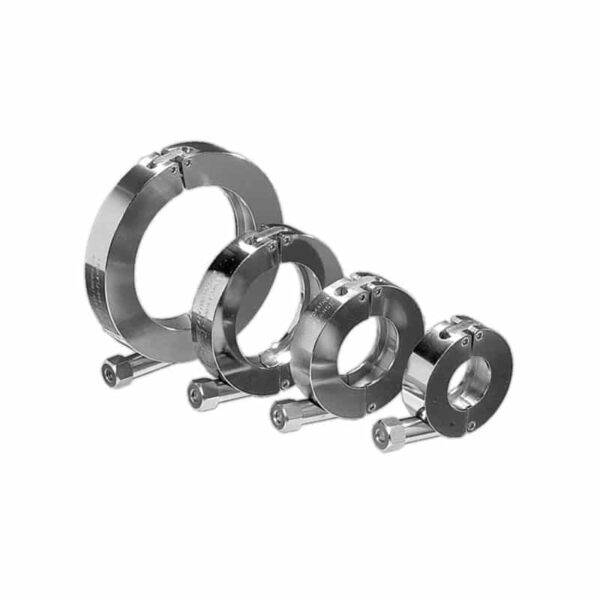

Quick clamps such as the ANCORP CNC Aluminum Clamp are the commonly preferred method for fastening ISO flange connections due to the fact that they offer the fastest and easiest fastening method for creating a reliable ISO vacuum seal.


Features



  •  High Vacuum Rated to 1×10-8 Torr
    •
  •  Compatible with all ISO standard vacuum flanges and fittings
    •
  •  The design of this clamp eliminates the need for over pressure rings on sizes QF16, QF25, and QF40
    •




 Materials



  • Body: Stainless Steel
    •
  • Hardware (pins, studs and hinges): Stainless steel
    •




 Product Notes



  • Machined from solid bar for greatly increased strength
    •
  • Integrated handle lock to prevent accidental opening
    •
  • Ideal for corrosive, high torque, high heat and low temperature applications
    •
  • Maximum closing torque = 6ft. lbs
    •
