• 4050015
  • 4050015

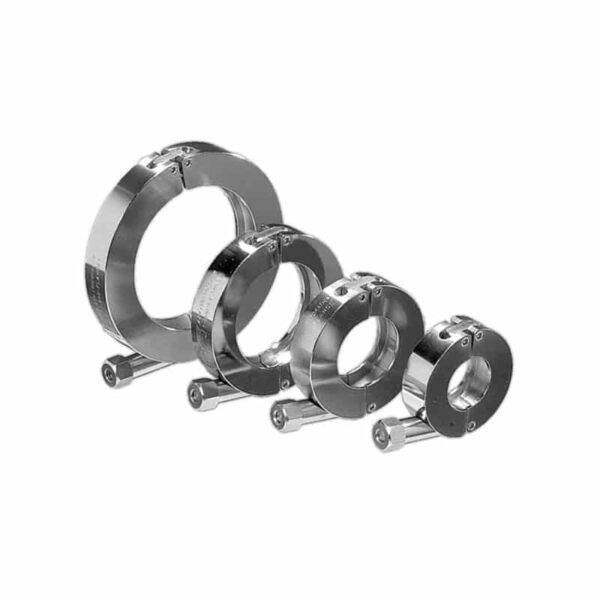

REPRESENTATIVE IMAGE

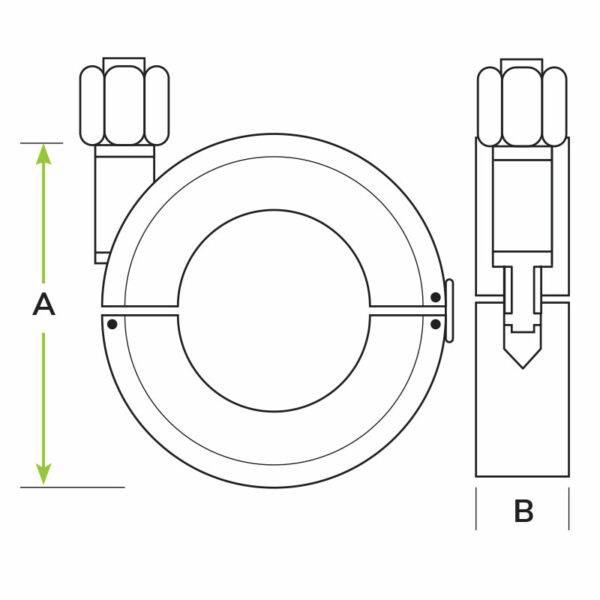

Attributes

A 3.94
B 0.63
Tube Size 2
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

QF50-CLMP-SS

QF50 CNC Stainless Steel Clamp

$90.00

Available on backorder

Part ID: 4050018









Quick clamps such as the ANCORP CNC Stainless Steel Clamp are the commonly preferred method for fastening ISO flange connections due to offering the fastest and easiest fastening method for creating a reliable ISO vacuum seal. This fastening style is ideal for corrosive, high torque, high heat, and low-temperature applications commonly found in processing systems and foreline vacuum plumbing.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  • The design eliminates the need for over-pressure rings on sizes QF16, QF25, and QF40
    •

  • Integrated locking handle to prevent accidental opening
    •









Specifications






  • Material
    •



    • Body: Stainless Steel
      •

    • Hardware (pins, studs and hinges): Stainless Steel
      •

    • Machined from solid bar for greatly increased strength
      •



  • Maximum closing torque, 6ft. lbs
    •

  • Ideal for corrosive, high torque, high heat, and low-temperature applications
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 3.94



                    B 0.63



                    Tube Size 2



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
