LF63/100-SCC

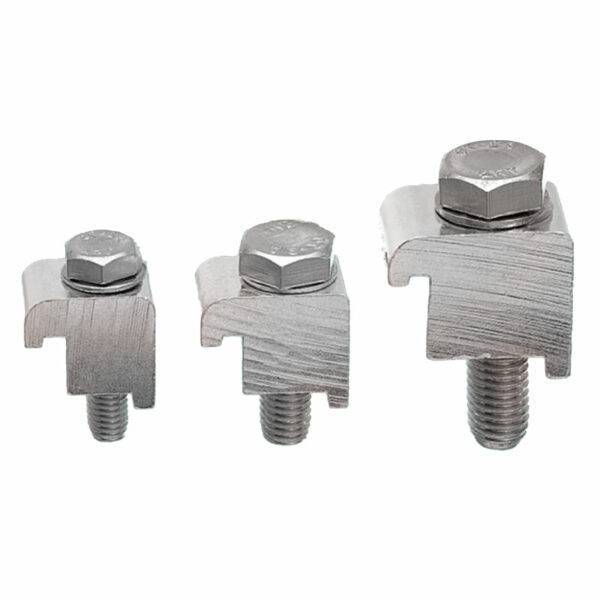

LF63/100 Single Claw Clamp

$5.65

Available on backorder

Part ID: 4500003









Claw clamps require the use of more than one clamp per flange connection. They require more work per seal assembly, but offer greater strength than the quick clamp if the seal assembly must bear a lateral load. They are traditionally the most popular clamps for ISO sizes LF63 and larger. These clamps are the only clamps capable of sealing sizes LF250 to LF500.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Fastens ISO-LF flanges to tapped ISO-LFB flanges or components (valves, chambers) with a compatible bolthole pattern and sealing groove
    •









Specifications






  • Material
    •



    • Body: Aluminum
      •

    • Hardware (pins, studs and hinges): Stainless Steel
      •
