• 4500060
  • 4500060

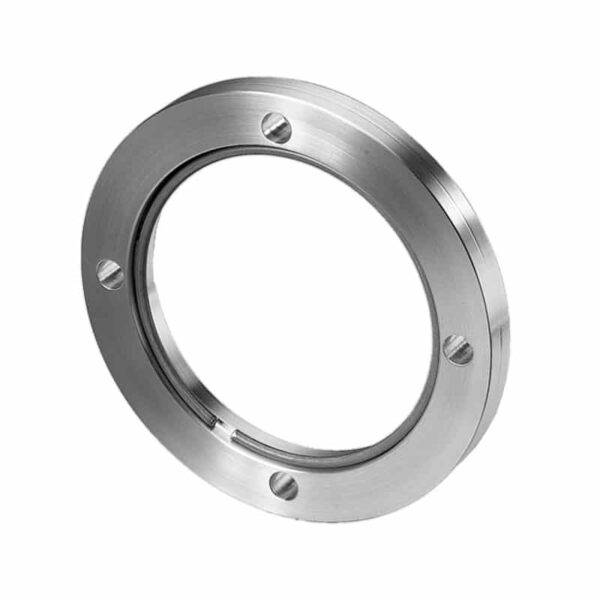

REPRESENTATIVE IMAGE

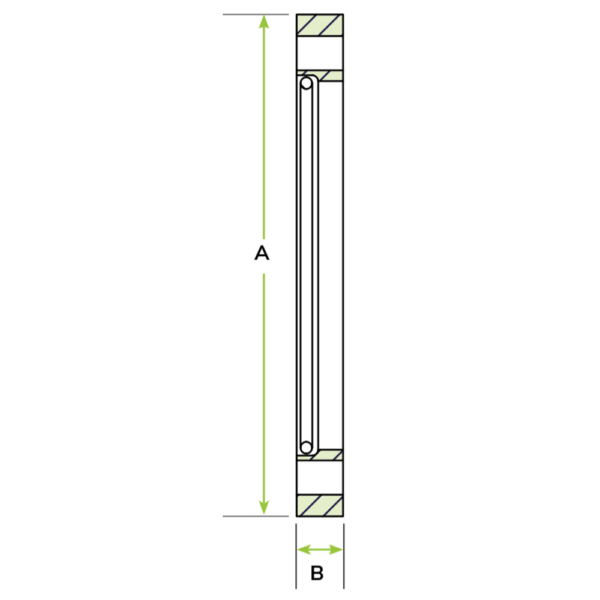

Attributes

A O.D. 11.22
B Thickness 0.63
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF200-800-RBR

LF200-800 Rotatable Bolt Ring

Original price was: $426.00.Current price is: $319.50.

Your Price

2 in stock (can be backordered)

Part ID: 4500064









Rotatable bolt rings are a subcomponent that fits around the outer diameter of a claw clamp-style LF flange. This allows the flange to behave as a rotatable bolted style LFB flange to ease bolt-hole alignment issues when assembling the vacuum system.  After the rotatable bolt ring is mounted to the LF flange, a bolt kit is used to fasten the two flanges together.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  •  Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Has a low profile compared to claw clamp fasteners
    •

  • Converts ISO-LF flanges to rotatable ISO-LFB flanges
    •

  •  O.D. and bolt pattern match ISO-LFB flanges
    •

  •  Retaining ring included
    •









Specifications






  • Materials:
    •



    • Body: Aluminum
      •

    • Retaining Ring: Stainless Steel
      •





























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A O.D. 11.22



                    B Thickness 0.63



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
