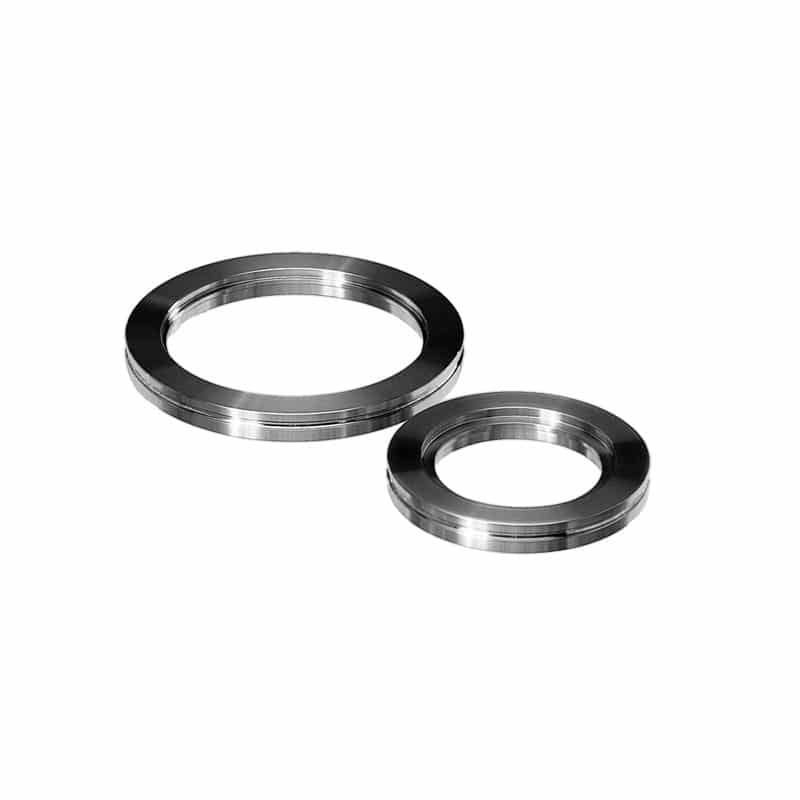

REPRESENTATIVE IMAGE

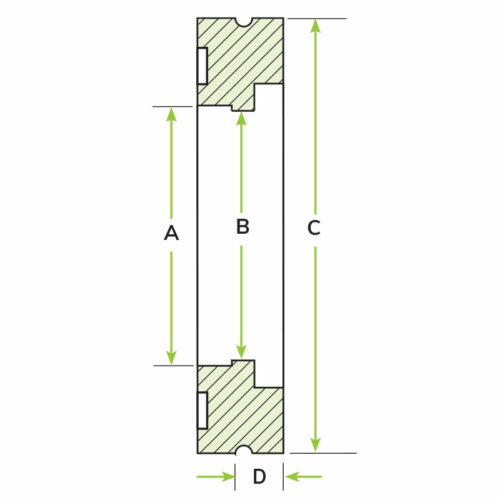

Attributes

A 20.04
B 19.62
C 21.65
D 0.38
Material 304L SS
Tube O.D. 20
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF500-2000-SF

LF500 Socket Flange, 304L SS

Part ID: 4500077


















$0.00





































			Standard Lead Time:

6 Weeks
















































Available on backorder


















































Socket Weld Flanges are designed with a tube counterbore for internal welds.




Features






  • High Vacuum Rated to 1×10-8 Torr
    •

  • Bakeable to 200°C
    •

  • Compatible with all ISO standard vacuum flanges and fittings
    •

  •  Quick Sealing and disassembly
    •

  •  Internal weld
    •

  •  Self-aligning
    •

  •  Designed to fit standard inch tubing O.D.’s
    •

  •  To simplify aluminum welding, ANCORP also offers an aluminum ISO-LF stub weld flange
    •









Specifications






  • Standard Material:
    •



    • 304L Stainless Steel
      •

    • 316 Stainless Steel
      •

    • 6061 Aluminum
      •
