REPRESENTATIVE IMAGE

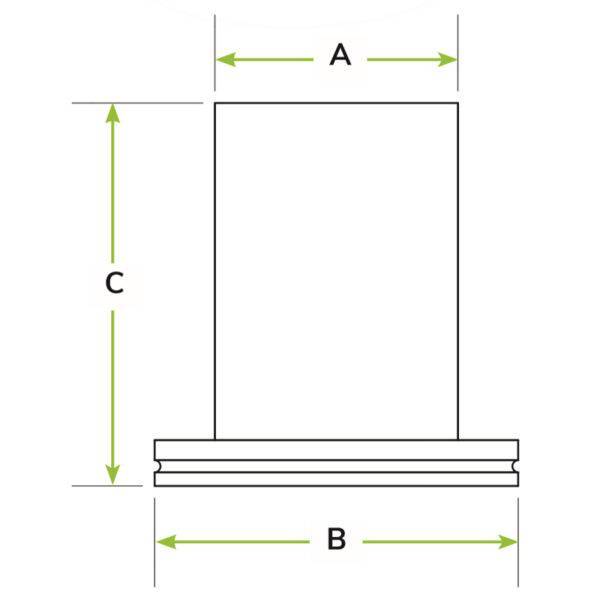

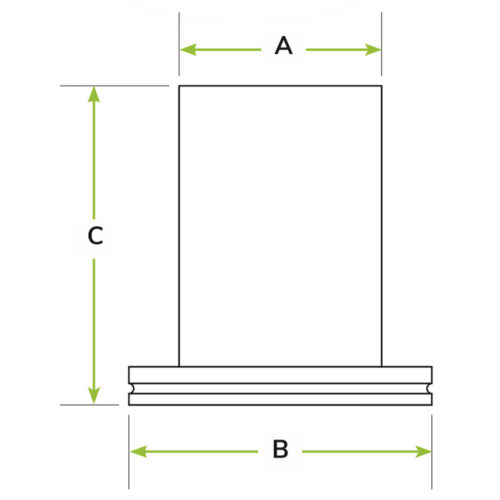

Attributes

A 12.75
B 3.94
C 14.57
Material 304L SS
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

LF320-1275-HN-3.94

ISO-LF320 Half Nipple 12 3/4 in. ,304L SS

Original price was: $1,220.00.Current price is: $1,098.00.

Available on backorder

Part ID: 4500116

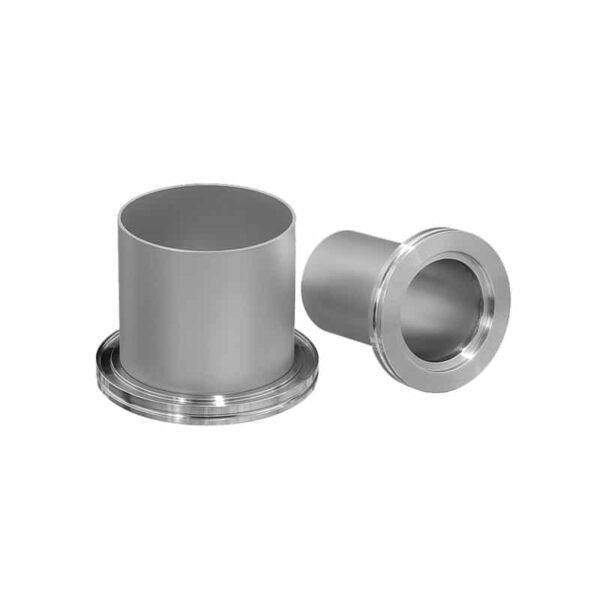

Half nipples are manufactured with a flange on one end and raw tubing on the other. They are often welded onto a custom vacuum system or instrument by a customer with in-house welding capabilities. They can also be used with quick connection fittings to make a vacuum tight connection without welding.

Materials

  • Standard:
    • Flanges: 304L Stainless Steel
    • Fitting: 304 Stainless Steel
    • 316 Stainless Steel
  • Alternative:
    • 6061 Aluminum (Contact us for price and availability)

Product Features

  • High Vacuum Rated to 1×10-8 Torr
  • Bakeable to 200°C
  • Compatible with all ISO standard vacuum flanges and fittings
  • Quick sealing and disassembly

Product Notes

  • Butt weld
  • Designed to fit standard inch tubing O.D.’s
  • Highly customizable

Options (Contact us for price and availability)

  • Custom lengths
  • ISO-QF large size flanges
