REPRESENTATIVE IMAGE

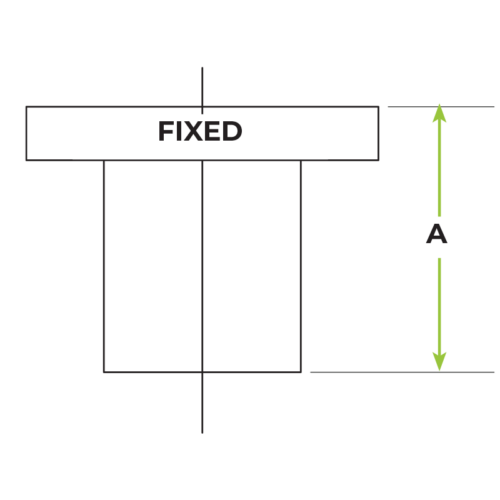

Attributes

A3.53
Tube O.D.3
Flange SizeCF462
Flange StyleFixed
Bolt Hole StyleClearance
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF462-300-HN-3.53

4.62 in. (DN 75) ConFlat Flange Half Nipple. 3 in. OD

Part ID: 5000346
$165.25
Standard Lead Time:
Contact
Available on backorder


Half Nipples are manufactured with a flange on one end and raw tubing on the other. Half Nipples are often welded onto a custom vacuum system or instrument by a customer with in-house welding capabilities. However, these fittings can also be used with quick connect compression fittings to make a vacuum tight connection without welding.
Features
  • Clearance (through-hole) and tapped bolt holes available
  • Butt weld
  • Designed to fit standard inch O.D.’s
  • Highly customizable
Specifications
  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A3.53
Tube O.D.3
Flange SizeCF462
Flange StyleFixed
Bolt Hole StyleClearance
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
