REPRESENTATIVE IMAGE

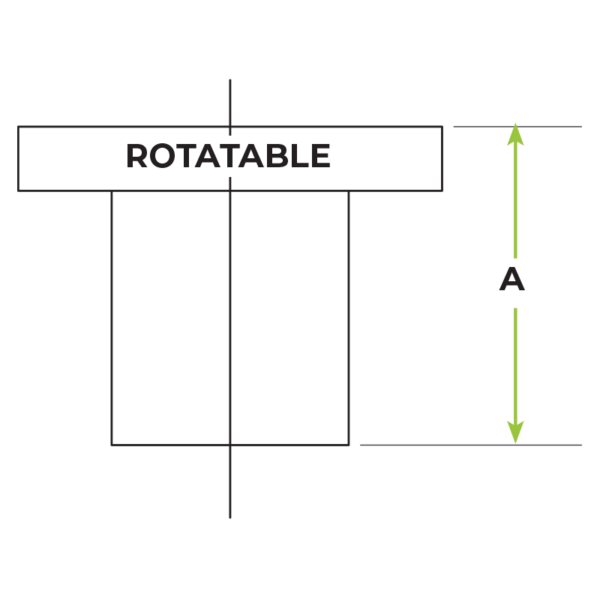

Attributes

A 4.32
Tube O.D. 5
Flange Size CF675
Flange Style Fixed
Bolt Hole Style Tapped
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF675T-500-HN-4.32

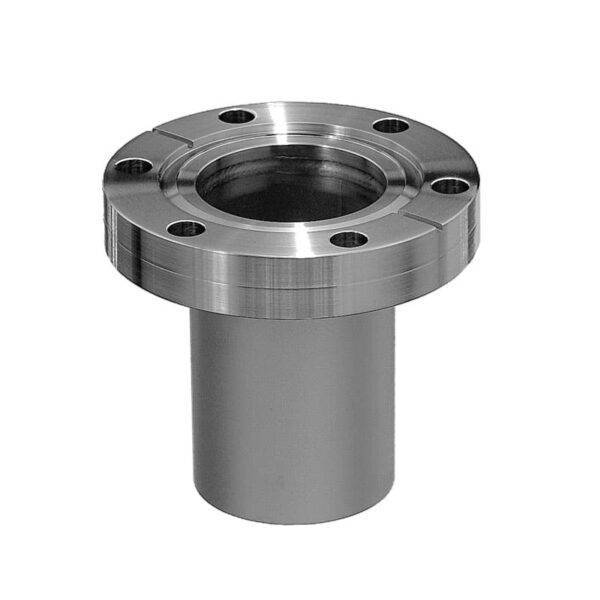

6.75 in. (DN 125) Tapped ConFlat Flange Half Nipple, 4.32 in. OAL

Part ID: 5000397


















$0.00





































			Standard Lead Time:

Contact
















































Available on backorder


















































Half Nipples are manufactured with a flange on one end and raw tubing on the other. Half Nipples are often welded onto a custom vacuum system or instrument by a customer with in-house welding capabilities. However, these fittings can also be used with quick connect compression fittings to make a vacuum tight connection without welding.




Features






  • Clearance (through-hole) and tapped bolt holes available
    •

  • Butt weld
    •

  • Designed to fit standard inch O.D.’s
    •

  • Highly customizable
    •









Specifications






  • Flange Material: 304L Stainless Steel
    •

  • Fitting Material: 304 Stainless Steel
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.32



                    Tube O.D. 5



                    Flange Size CF675



                    Flange Style Fixed



                    Bolt Hole Style Tapped



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
