• 5000533
  • 5000533

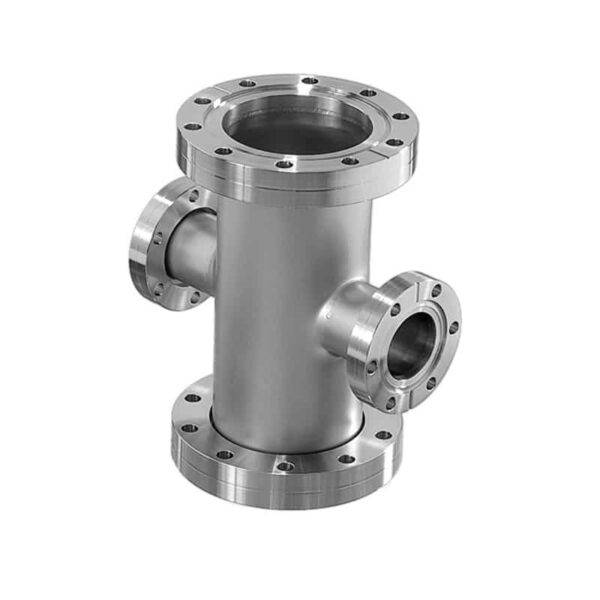

REPRESENTATIVE IMAGE

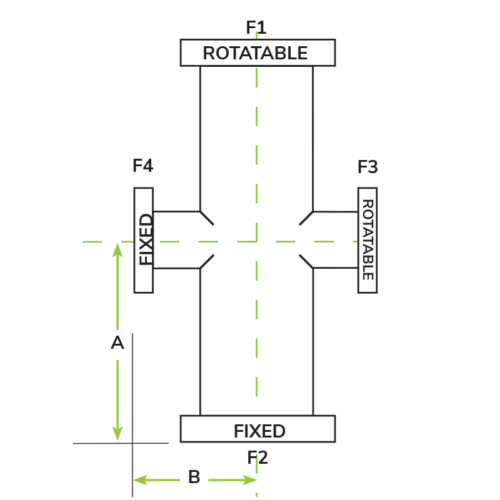

Attributes

A 3.23
B 2.13
Flange 3 O.D. 1.33
Qty / Product -
Flange 1 & 2 O.D. 3.37
Flange 3 Tube O.D. 0.75
Flange 1 & 2 Tube O.D. 2
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF338XCF133-200X075-R4X-3.22X2.13

3.38 in. (DN 50) to 1.33 in. (DN 16) ConFlat Flange Reducer Cross

$470.00

Available on backorder

Part ID: 5000535











Features






  • Pulled ports for optimum vacuum performance
    •









Specifications






  • Flange Material: 304L Stainless Steel
    •

  • Fitting Material: 304 Stainless Steel
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range from -200°C up to 450°C
    •

  • Leak rating < 1×10-9 std. cc/s helium
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 3.23



                    B 2.13



                    Flange 3 O.D. 1.33



                    Qty / Product -



                    Flange 1 & 2 O.D. 3.37



                    Flange 3 Tube O.D. 0.75



                    Flange 1 & 2 Tube O.D. 2



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
