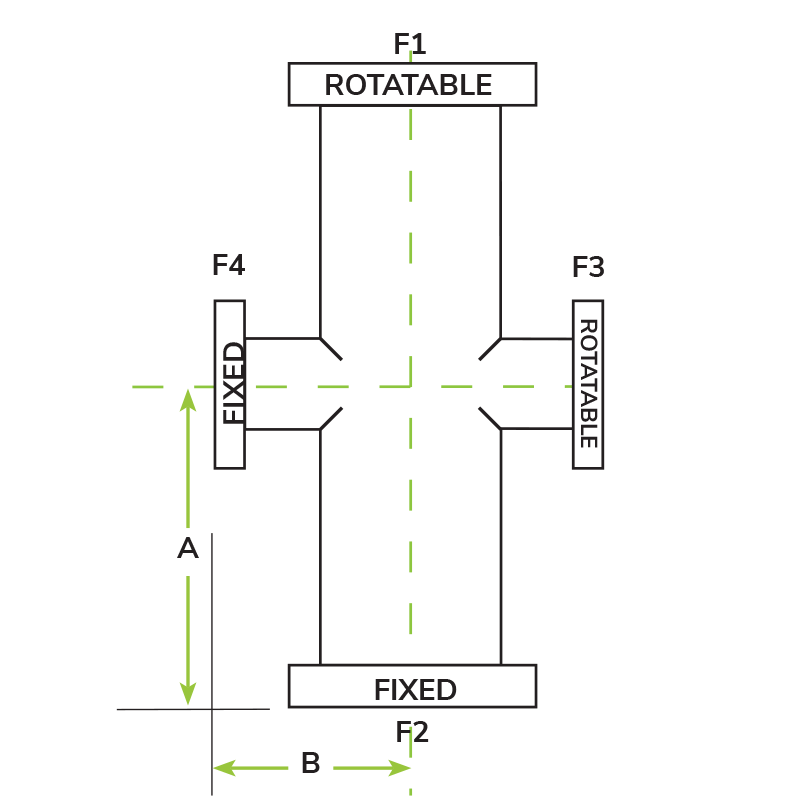

Attributes

A 3.38
B 3.48
Flange 3 O.D. 3.37
Qty / Product -
Flange 1 & 2 O.D. 4.47
Flange 3 Tube O.D. 2
Flange 1 & 2 Tube O.D. 2.5
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF450xCF338-250X200-R4X-3.38X3.48

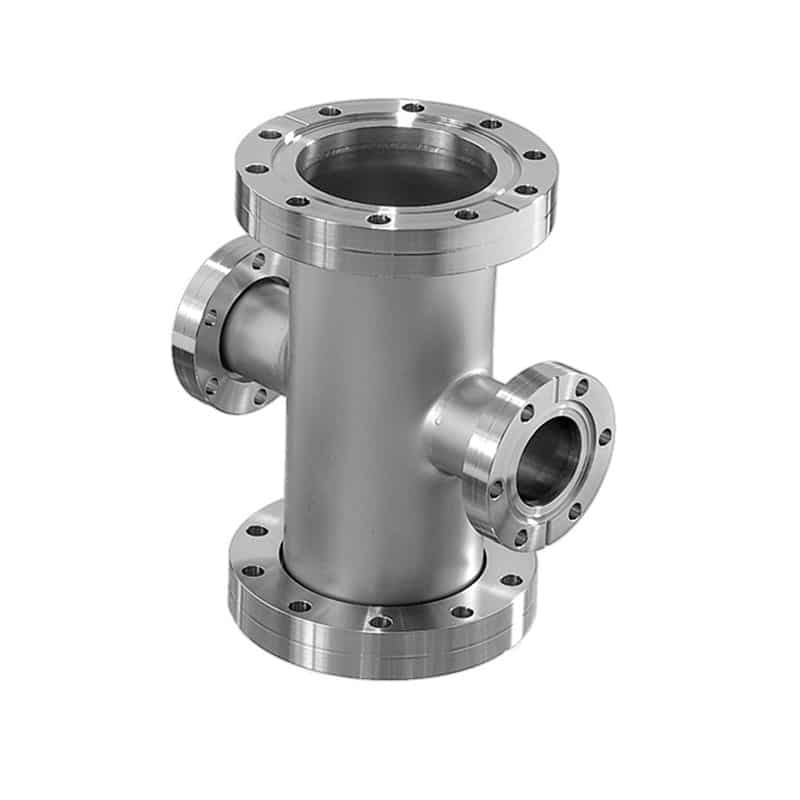

Reducer Cross with 4.50 in. (DN 63) to 3.38 in. (DN 50) ConFlat Flanges

Part ID: 5000538


















$565.00



















































			Standard Lead Time:

Contact
















































Available on backorder

















































Crosses are manufactured with a flange on each end of an “X” shaped section of tubing. Crosses accommodate junctions or alignment considerations for vacuum system design.




Features






  • Pulled ports for optimum vacuum performance
    •









Specifications






  • Flange Material: 304L Stainless Steel
    •

  • Fitting Material: 304 Stainless Steel
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range from -200°C up to 450°C
    •
