Attributes

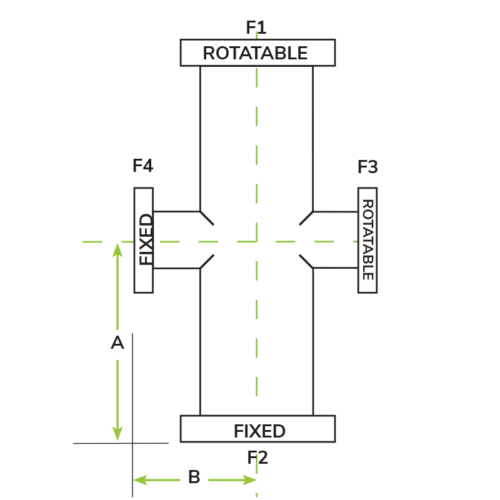

A 3.63
B 3.73
Flange 3 O.D. 3.37
Qty / Product -
Flange 1 & 2 O.D. 4.62
Flange 3 Tube O.D. 2
Flange 1 & 2 Tube O.D. 3
3D CADLogin
DrawingLogin

CF462xCF338-300X200-R4X-3.63X3.73

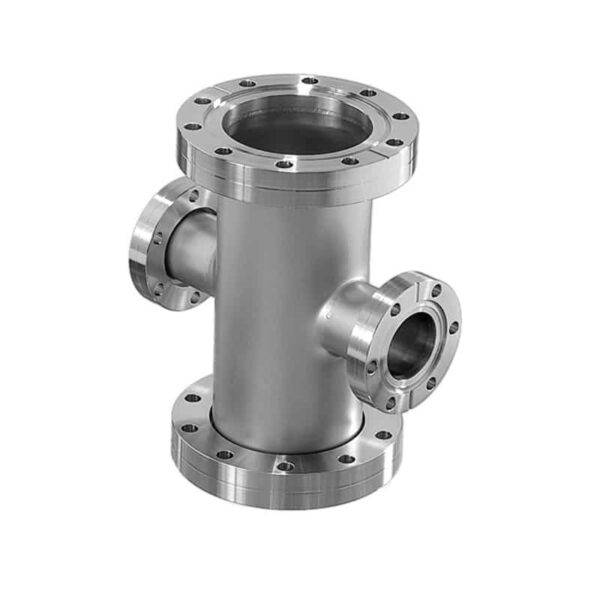

Reducer Cross with 4.62 in. to 3.38 in. ConFlat Flanges

$750.00

Available on backorder

Part ID: 5000539
















Materials:


  • 304L stainless steel
    •



Product Notes:


  • Pulled ports for optimum vacuum performance
    •
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •
  • Temperature range: -200°C up to 450°C
    •
  • Leak rating < 1×10-9 std. cc/s helium
    •



Options: Contact us for price and availability


  • Custom lengths
    •
  • Tapped flanges
    •
  • Custom flange combinations
    •
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
    •
