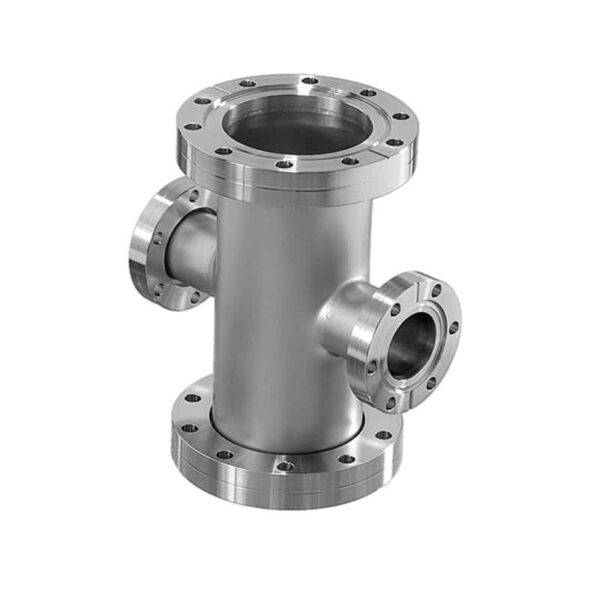

REPRESENTATIVE IMAGE

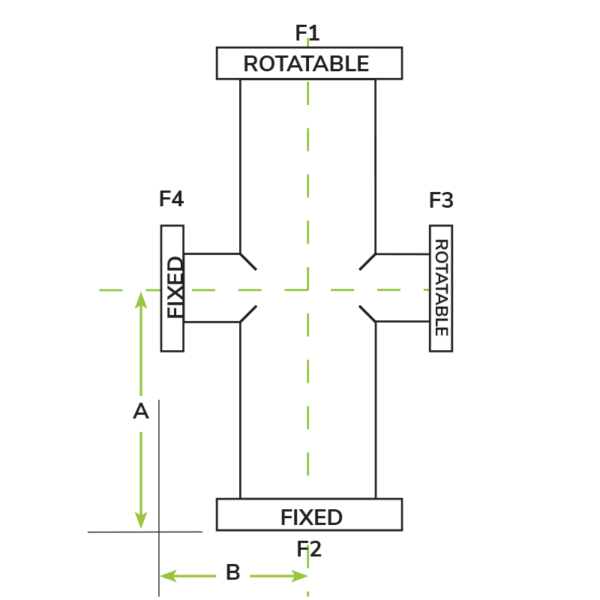

Attributes

A 4.32
B 4.23
Flange 3 O.D. 3.37
Qty / Product -
Flange 1 & 2 O.D. 5.97
Flange 3 Tube O.D. 2
Flange 1 & 2 Tube O.D. 4
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF600xCF338-400X200-R4X-4.32X4.23

Reducer Cross with 6.00 in. to 3.38 in. ConFlat Flanges

$723.00

4 in stock (can be backordered)

Part ID: 5000542


Materials

  • 304L stainless steel

Product Notes

  • Pulled ports for optimum vacuum performance
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium

Options: Call for price and availability

  • Custom lengths
  • Tapped flanges
  • Custom flange combinations
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
