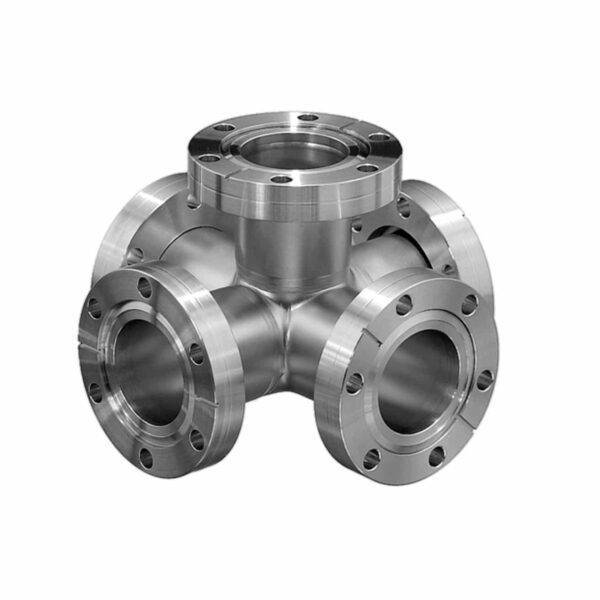

REPRESENTATIVE IMAGE

Attributes

A 6.56
Tube O.D. 6
Flange O.D. 8
Flange Type CF800
3D CADLogin
DrawingLogin

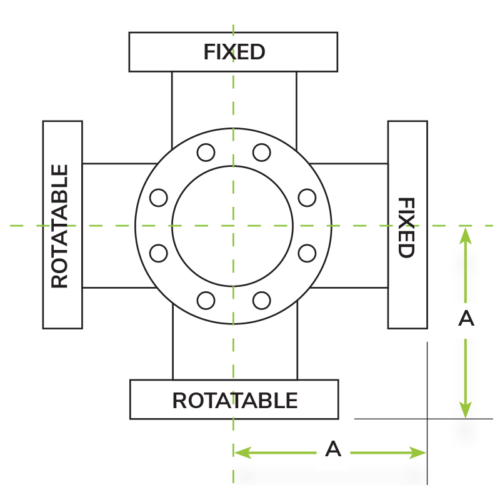

All dimensions are in inches unless otherwise specified.

CF800-600-5X-6.56

5-Way Cross with 8.00 in. (DN 160) ConFlat Flanges – 6.56 in. Centerline

Request a Quote for Price

Available on backorder

Part ID: 5000562


Materials

  • Flanges: 304L Stainless Steel
  • Fitting: 304 Stainless Steel

Product Notes

  • Pulled ports for optimum vacuum performance
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-9 std. cc/s helium

Options: Call for price and availability

  • Custom lengths
  • Tapped flanges
  • Custom flange combinations
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.
