• 5000596
  • 5000596

REPRESENTATIVE IMAGE

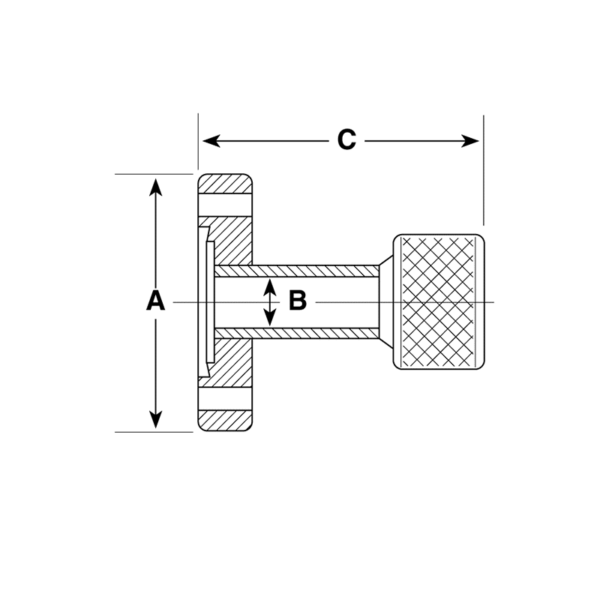

Attributes

A1.33
B1/4 in.
C1.312
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF133XQD25-1.31

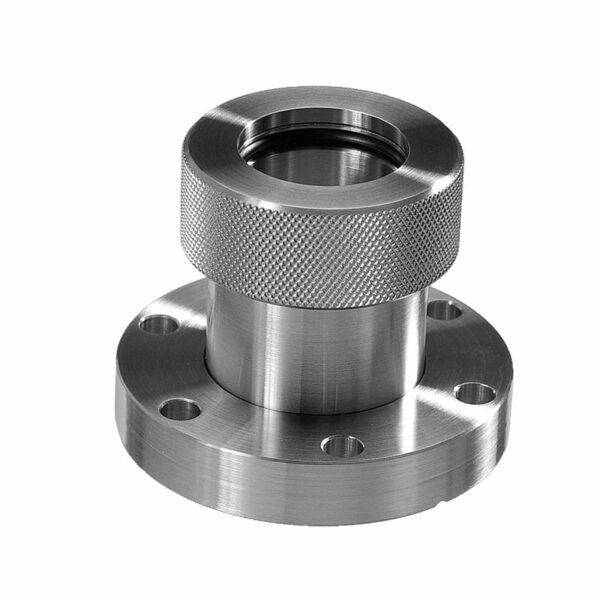

1/4 in. Quick Disconnect with 1.33 in. (DN 16) ConFlat Flanges

Part ID: 5000599
$112.00
3 in stock (can be backordered)


Quick disconnects are a fast and easy way to make and break a vacuum seal onto metal or glass tubing.
Features
  • High vacuum rating
  • Adapts from Quick Disconnect fitting to CF flange
  • Convenient for mounting gauges, instruments, or adding tube ports without welds
Specifications
  •  Materials:
    •  Flange: 304L Stainless Steel
    • Fitting: 304 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A1.33
B1/4 in.
C1.312
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
