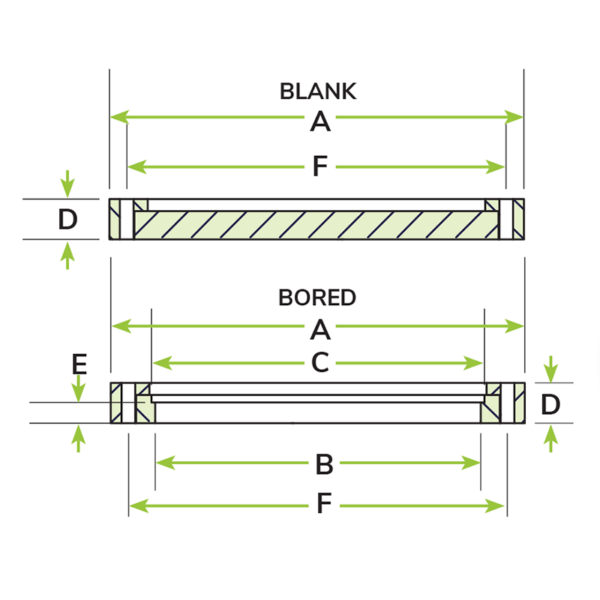

Attributes

A 5.97
B -
C -
D 0.84
E -
F 5.128
Thrd 0.332
Flange Style Rotatable
Bolt Hole Style Clearance
Bolt Hole Number 16
3D CADLogin
DrawingLogin

CF600R-000-316LN

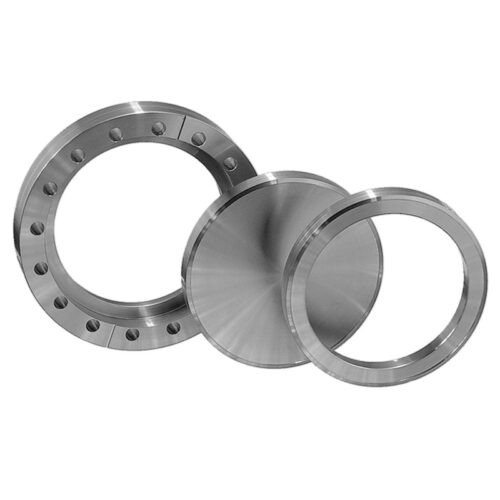

316LN 6.00″ Blank Rotatable ConFlat Flange

$450.00

Part ID: 5004132


6.00 inch outer diameter ConFlat (DN100 CF) rotatable flanges ideal for UHV applications requiring low magnetic permeability.



Product Features:

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-hole) bolt holes available
  • Rotatable flanges ease bolt hole alignment
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available



Product Specifications

  • Vacuum rating: 1×10-13 Torr
  • Temperature range: -200°C to 450°C
  • Low magnetic permeability of 1.005 μmax
  • Excellent for Beamlines, XHV, X-Ray, and Laser applications
  • Heat resistant to higher temperatures
  • Increased resistance to irradiation damage
  • Resistant to crevice corrosion
  • High level of weldability
  • Resistant to pitting
