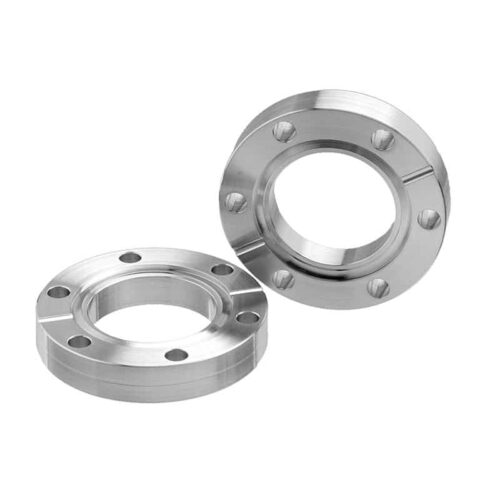

REPRESENTATIVE IMAGE

Attributes

A -
B 1
Thrd 0.27
Bolt Holes 6
Flange O.D. 2.72
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF275-000-DS-1.0

Double Sided CF275 Blank

$85.00

Available on backorder

Part ID: 5008261


Product Features

  • Same size CF flange on both sides
  • Ideal to add a spacer to your system or customize with a radical port
  • Requires special; CF double-sided flange bolt kit for fastening
  • Use standard CF gaskets to seal
  • Self-aligning
  • Sexless flanges
  • Interchangeable with other ConFlat style flanges

Product Specifications

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200oC up to 450oC
  • Standard materials: 304L stainless steel

Options: Contact us for price and availability

  • Tapped bolt holes
  • Alternative materials: 316LN (flange), 316L stainless steel
