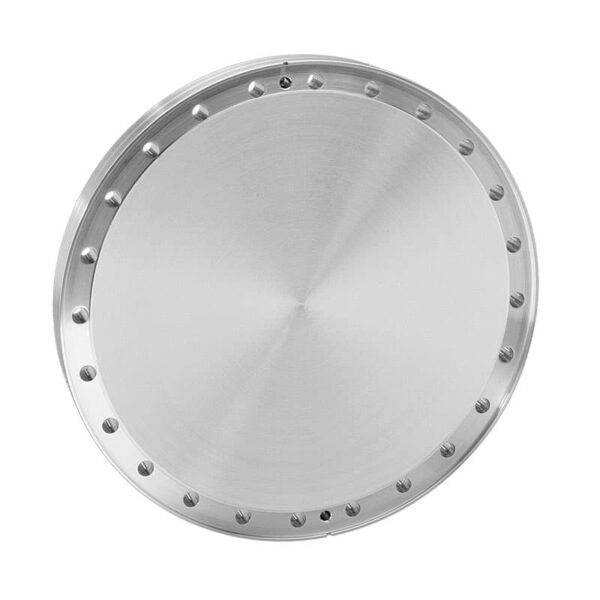

REPRESENTATIVE IMAGE

Attributes

A 19.56
B 17.88
E 1.31
F 3.04
Type Dish Head
Tube O.D. 16
Bolt Holes 36
Flange O.D. 19.56
3D CADLogin
DrawingLogin

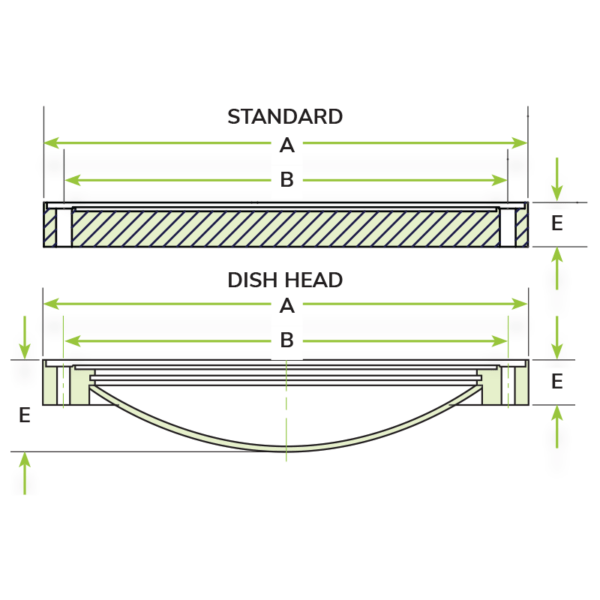

All dimensions are in inches unless otherwise specified.

WF1900FD-000

Blank Wire Seal Flange Female 19.00″ Dish Head

Request a Quote for Price

Part ID: 5500021











Features






  • Designed to fit standard inch tubing O.D.’s
    •

  • Self-aligning
    •

  • Internal weld
    •

  • Blank flanges close unused ports or custom modify
    •

  • Standard blank flanges are manufactured from solid stainless steel plate for highest sealing reliability
    •

  • Dish head blank flanges have a stainless steel disk welded onto the back of a bored flange. This option weighs less and costs less. Dish head blank flanges have a “-d” suffix on the Reference ID.
    •









Specifications






  • Flange: 304L Stainless Steel
    •

  • Sizes: outer diameter 12 3/8 inches up to 27 1/8 inches (for tubing diameter 10 inches up to 24 inches)
    •

  • Vacuum rated: UHV (approx. 1×10-13 Torr)
    •

  • Temperature range: -200°C up to 450°C
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 19.56



                    B 17.88



                    E 1.31



                    F 3.04



                    Type Dish Head



                    Tube O.D. 16



                    Bolt Holes 36



                    Flange O.D. 19.56



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
