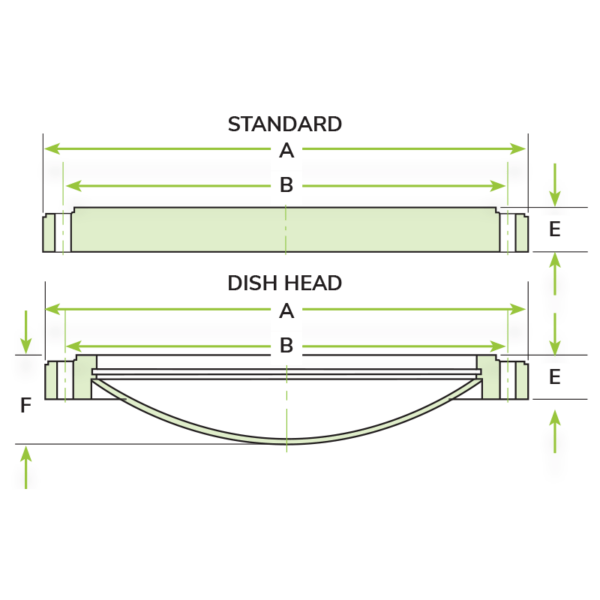

All dimensions are in inches unless otherwise specified.

WF2200MD-000

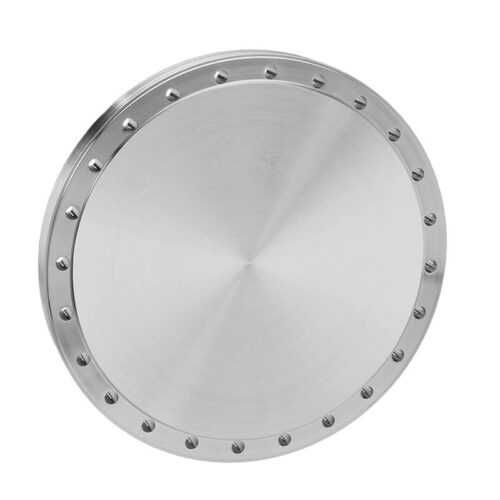

Blank Wire Seal Flange Male 22.00″ Dish Head

Request a Quote for Price

Available on backorder

Part ID: 5500025


Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Blank flanges close unused ports or custom modify
  • Standard blank flanges are manufactured from solid stainless steel plate for highest sealing reliability
  • Dish head blank flanges have a stainless steel disk welded onto the back of a bored flange. This option weighs less and costs less. Dish head blank flanges have a “-d” suffix on the Reference ID.

Specifications

  • Flange: 304L Stainless Steel
  • Sizes: outer diameter 12 3/8 inches up to 27 1/8 inches (for tubing diameter 10 inches up to 24 inches)
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
