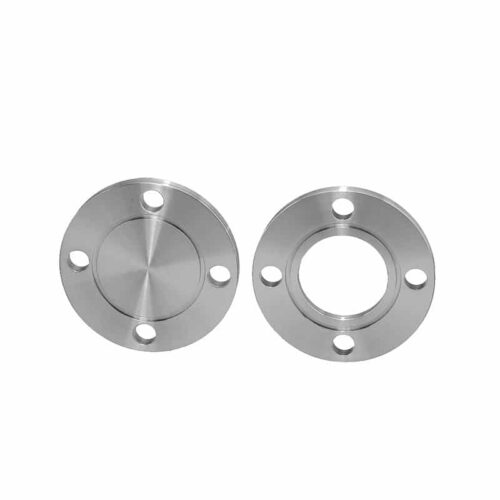

REPRESENTATIVE IMAGE

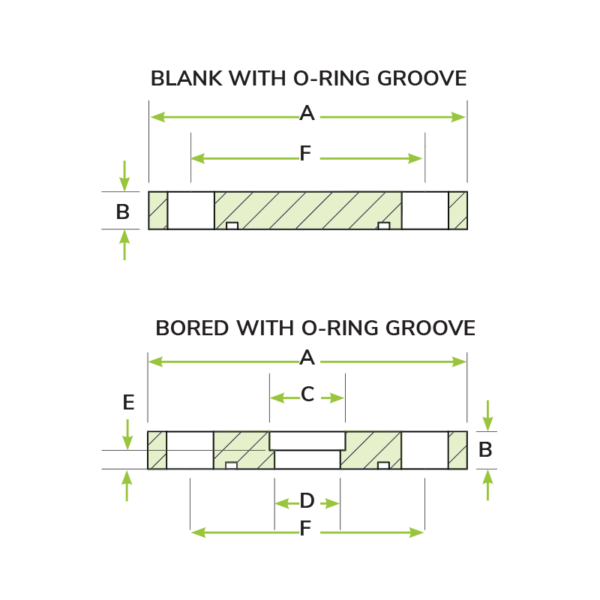

Attributes

A 5
B 0.5
C 1.51
D 1.375
E 0.25
F 3.88
Bolt Hole NO. 4
Bolt Hole Size 0.625
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA150G-150

150ASA Grooved 1-1/2 in. ID

$162.00

Available on backorder

Part ID: 6000032


ASA fixed grooved bored flanges are manufactured with a weld prep and tubing bore for immediate installation on your system with no additional alteration. ASA fixed grooved blank flanges are manufactured with no weld prep and no tubing bore. Blank flanges are commonly used to close unused ports or to be altered by customers with their own custom machining capability for a special use. Fixed grooved flanges have a set bolt hole orientation and an O-ring groove machined into the surface of the flange face.

Product Features

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Interchangeable with other ASA/ANSI style flanges

Product Specifications

  • Vacuum rated: UHV (approx. 1×10-8 Torr)
  • Temperature range: -20oC up to 200oC
  • Standard materials: 304 stainless steel

Options

  • Contact us for price and availability
