• 6000109
  • 6000109

REPRESENTATIVE IMAGE

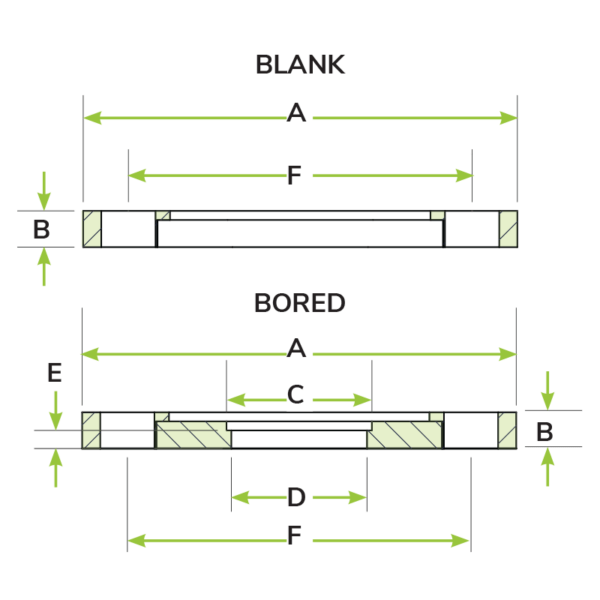

Attributes

A 4.25
B 0.5
C 1.1
D 0.875
E 0.25
F 3.125
Bolt Hole NO. 4
Bolt Hole Size 0.625
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA100R-100

100ASA Rotatable 1 in. ID

$170.10

Available on backorder

Part ID: 6000057









Rotatable flanges have a two-piece design allowing for bolt hole rotation to ease bolt alignment when mating the two flanges. Both fixed and rotatable flanges are available with an o-ring groove.




Features






  • Designed to fit standard inch tubing O.D.’s
    •

  • Self-aligning
    •

  • Internal weld
    •

  • Rotatable flanges ease bolt hole alignment
    •

  • Interchangeable with other ASA/ANSI style flanges
    •









 Specifications






  • Pressure range: HV (approx. 1×10-8 Torr)
    •

  • Temperature range: -20°C to 200°C
    •

  • Standard materials: 304L stainless steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

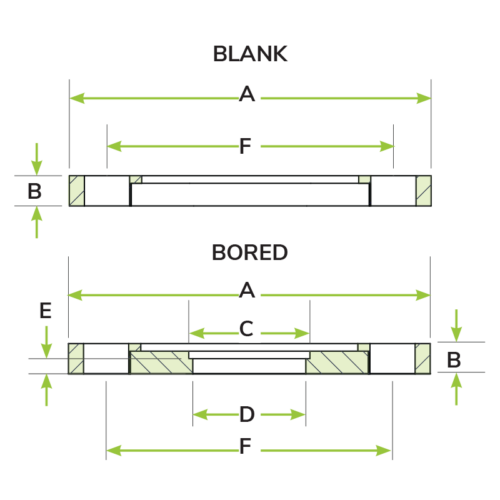

Attributes




















                    A 4.25



                    B 0.5



                    C 1.1



                    D 0.875



                    E 0.25



                    F 3.125



                    Bolt Hole NO. 4



                    Bolt Hole Size 0.625



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
