REPRESENTATIVE IMAGE

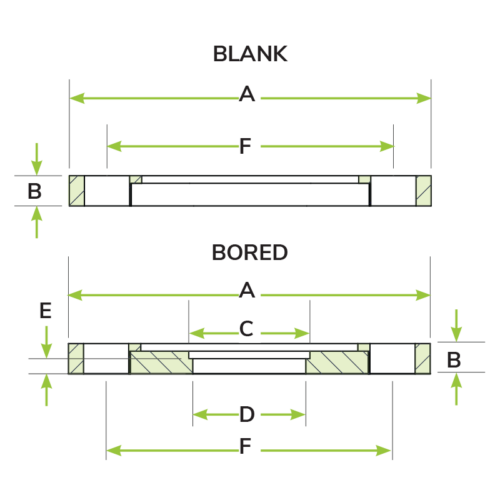

Attributes

A 5
B 0.5
C BLANK
D -
E -
F 3.88
Bolt Hole NO. 4
Bolt Hole Size 0.625
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA150R-000

150 ASA Rotatable Blank

Part ID: 6000059


















$190.05





































			Standard Lead Time:

Contact
















































Available on backorder

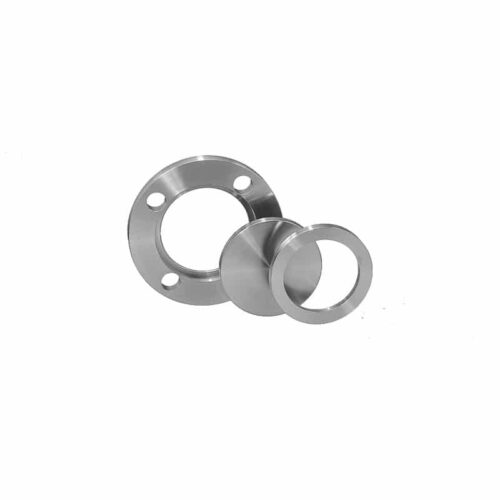

Rotatable flanges have a two-piece design allowing for bolt hole rotation to ease bolt alignment when mating the two flanges. Both fixed and rotatable flanges are available with an o-ring groove.




Features






  • Designed to fit standard inch tubing O.D.’s
    •

  • Self-aligning
    •

  • Internal weld
    •

  • Rotatable flanges ease bolt hole alignment
    •

  • Interchangeable with other ASA style flanges
    •









 Specifications






  • Pressure range: HV (approx. 1×10-8 Torr)
    •

  • Temperature range: -20°C to 200°C
    •

  • Standard materials: 304L stainless steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

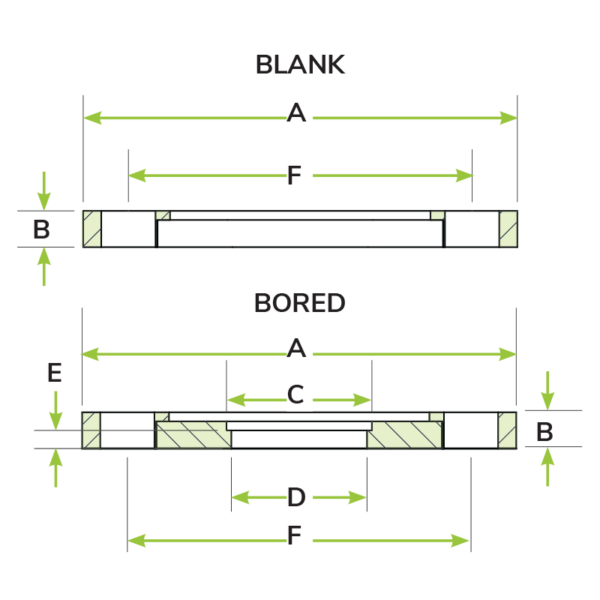

Attributes




















                    A 5



                    B 0.5



                    C BLANK



                    D -



                    E -



                    F 3.88



                    Bolt Hole NO. 4



                    Bolt Hole Size 0.625



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
