ASA150R-150

ASA/ANSI Rotatable Weld Flanges

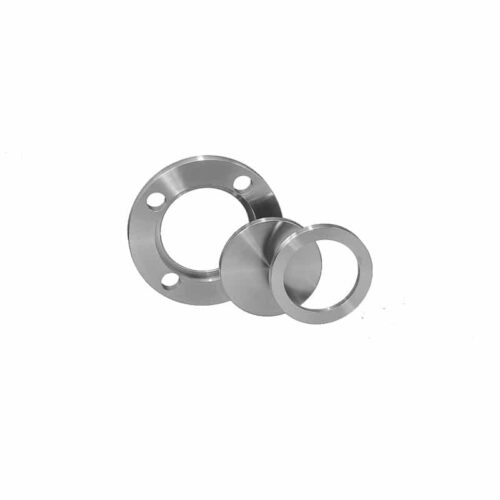

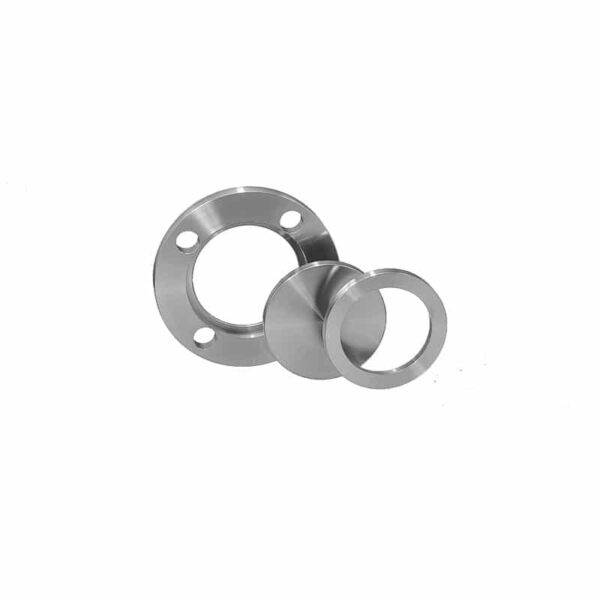

These flanges are manufactured with a weld prep and tubing bore for immediate installation on your system with no additional alteration. Rotatable flanges have a two-piece design allowing for bolt hole rotation to ease bolt alignment when mating the two flanges. Both fixed and rotatable flanges are available with an o-ring groove.

Product Features:

• Designed to fit standard inch tubing O.D.’s
• Self-aligning
• Internal weld
• Rotatable flanges ease bolt hole alignment
• Interchangeable with other ASA/ANSI style flanges

Product Specifications:

• Pressure range: HV (approx. 1×10-8 Torr)
• Temperature range: -20°C to 200°C
• Standard materials: 304 stainless steel

Options: Contact us for price and availability
