• 6000109
  • 6000109

REPRESENTATIVE IMAGE

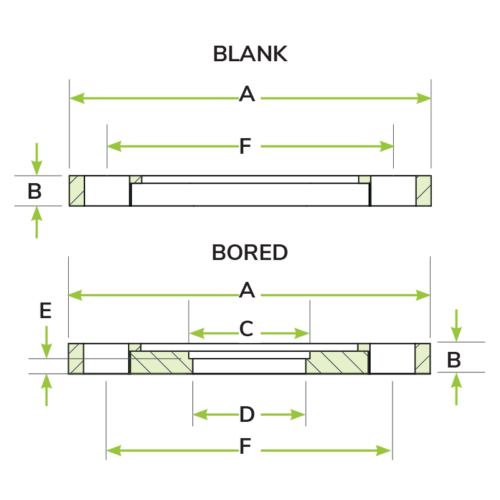

Attributes

A6
B0.5
C3.51
D3.438
E0.25
F4.75
Bolt Hole NO.4
Bolt Hole Size0.75
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA200R-350

200ASA Rotatable 3-1/2 in. ID

Part ID: 6000067
$271.95
Standard Lead Time:
Contact
Available on backorder

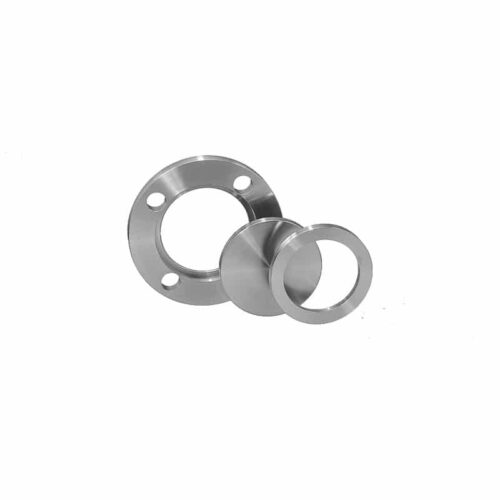

Rotatable flanges have a two-piece design allowing for bolt hole rotation to ease bolt alignment when mating the two flanges. Both fixed and rotatable flanges are available with an o-ring groove.
Features
  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Rotatable flanges ease bolt hole alignment
  • Interchangeable with other ASA/ANSI style flanges
 Specifications
  • Pressure range: HV (approx. 1×10-8 Torr)
  • Temperature range: -20°C to 200°C
  • Standard materials: 304L stainless steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

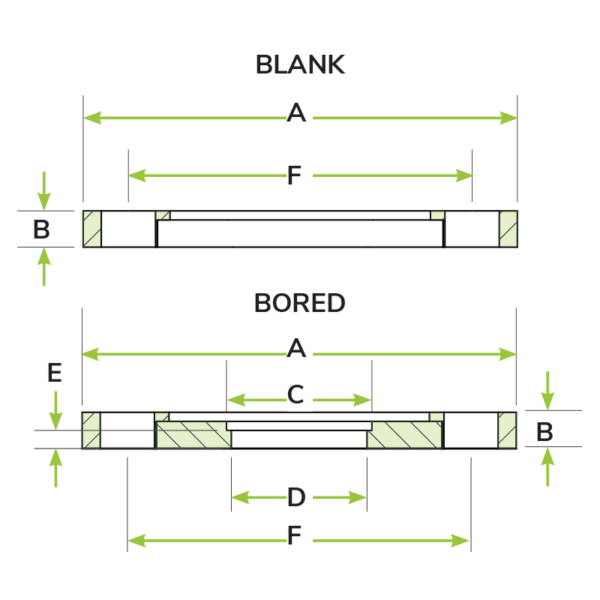

Attributes
A6
B0.5
C3.51
D3.438
E0.25
F4.75
Bolt Hole NO.4
Bolt Hole Size0.75
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
