• 6000109
  • 6000109

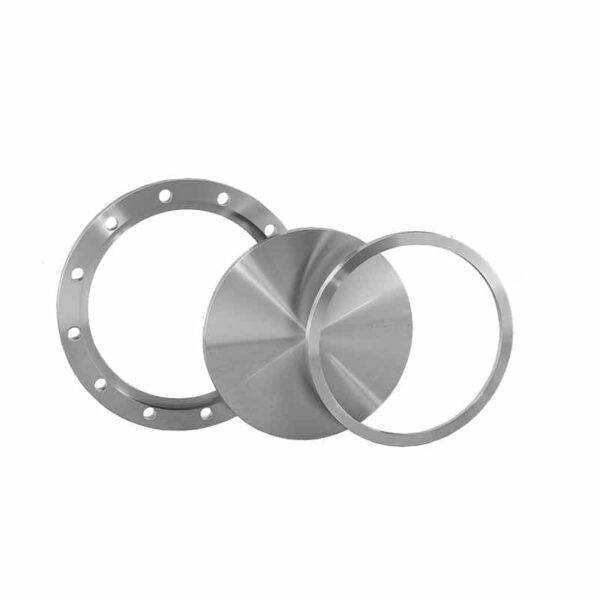

REPRESENTATIVE IMAGE

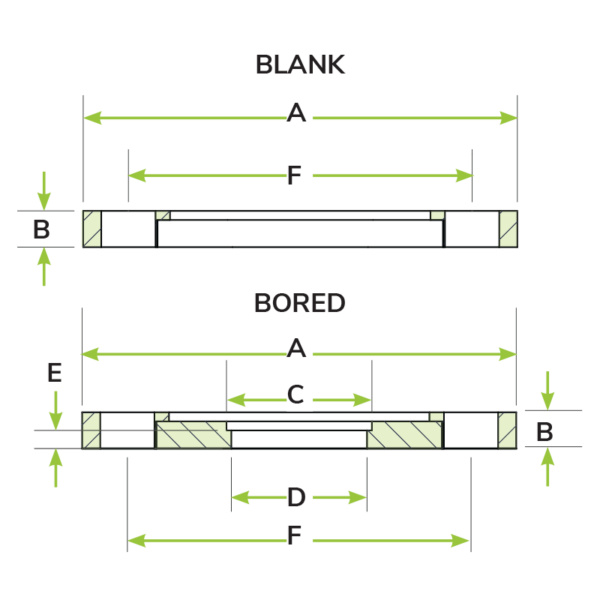

Attributes

A16
B0.75
C10.02
D9.875
E0.375
F14.25
Bolt Hole NO.12
Bolt Hole Size0.812
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA1000RG-1000

1000ASA Rotatable and Grooved 10 in. ID

Part ID: 6000110
$1,142.27
Standard Lead Time:
Contact
Available on backorder


Rotatable flanges have a two-piece design allowing for bolt hole rotation to ease bolt alignment when mating the two flanges. Both fixed and rotatable flanges are available with an o-ring groove.
Features
  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Rotatable flanges ease bolt hole alignment
  • Interchangeable with other ASA/ANSI style flanges
 Specifications
  • Pressure range: HV (approx. 1×10-8 Torr)
  • Temperature range: -20°C to 200°C
  • Standard materials: 304L stainless steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

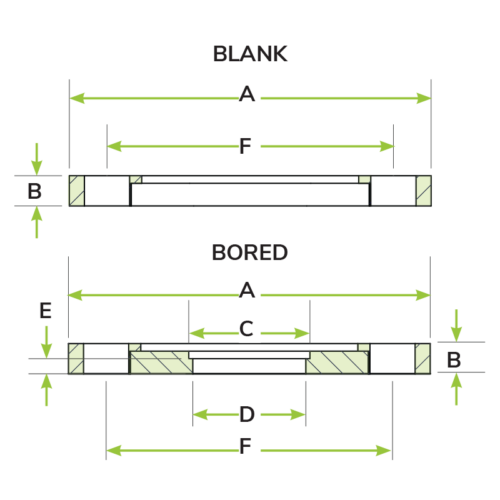

Attributes
A16
B0.75
C10.02
D9.875
E0.375
F14.25
Bolt Hole NO.12
Bolt Hole Size0.812
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
