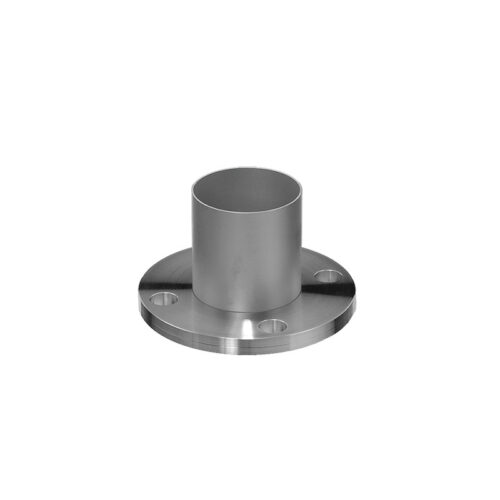

REPRESENTATIVE IMAGE

Attributes

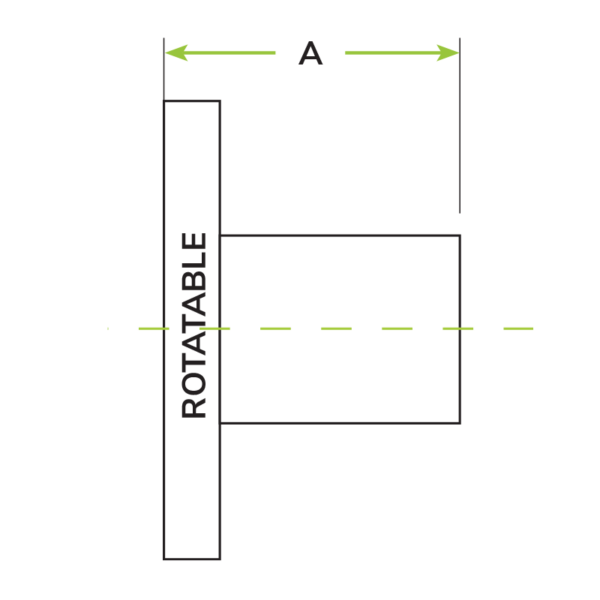

A 3.25
Tube O.D. 1.5
Flange O.D. 5
Tube Wall Thickness 0.065
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA150R-150-HN-3.25

ASA150 1.5 in. Tube Rotatable Half Nipple

$252.00

Available on backorder

Part ID: 6000186


These fittings are manufactured with a flange on one end and raw tubing on the other. Half nipples are often welded onto a custom vacuum system or instrument by a customer. However, these fittings can also be used with quick connect compression fittings to make a vacuum tight connection without welding.

Features

  • Clearance bolt holes
  • Buttweld
  • Designed to fit standard inch tubing O.D.’s
  • Highly customizable
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 3.25
Tube O.D. 1.5
Flange O.D. 5
Tube Wall Thickness 0.065
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
