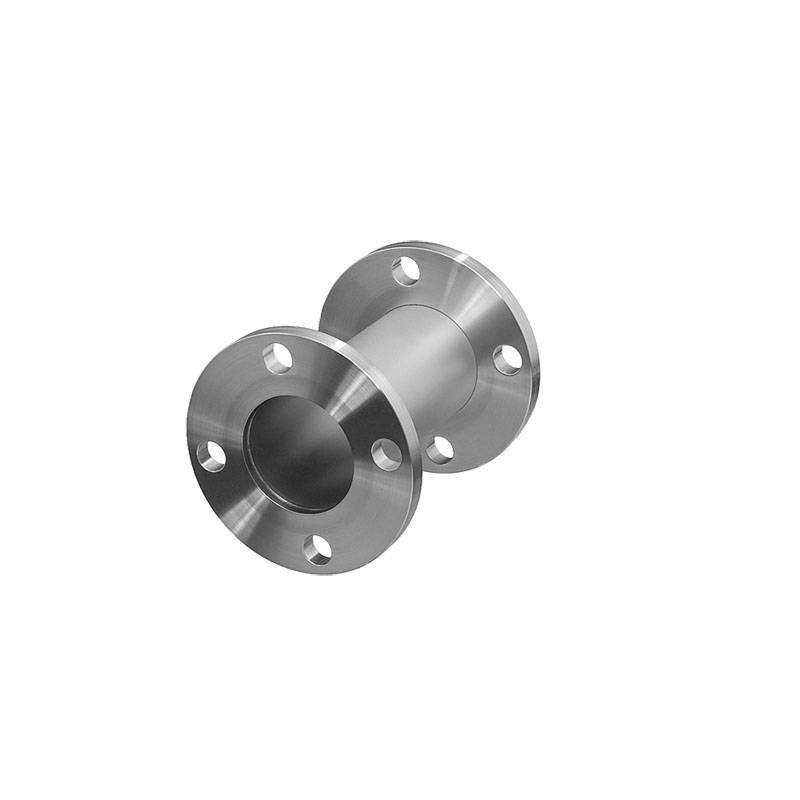

REPRESENTATIVE IMAGE

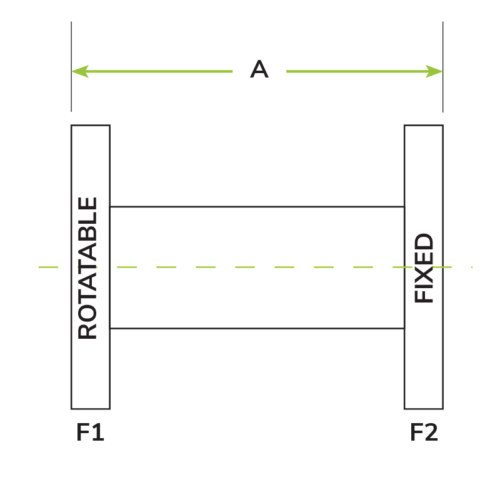

Attributes

A 8.5
Tube O.D. 3
Flange O.D. 6
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA200-300-N-8.50

ASA200 3 in. Rotatable Nipple 8.5 in. OAL

$504.00

Available on backorder

Part ID: 6000311


Nipples are manufactured with a flange on each end of a straight section of tubing. They are used to create a weld free straight connection within a vacuum system. Nipples are also used as straight adapters between different tubing sizes or flange types.

Features

  • Same size flange on both ends
  • Both flanges have a fixed bolt hole orientation
  • One fixed and one rotatable flange per fitting
  • Highly customizable
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

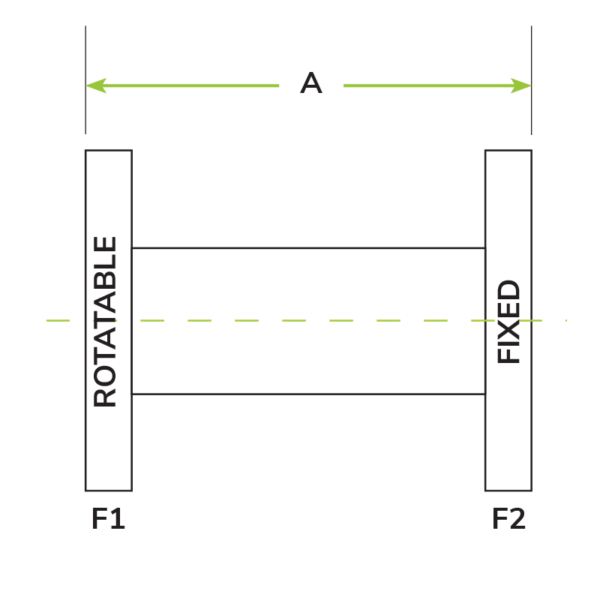

Attributes

A 8.5
Tube O.D. 3
Flange O.D. 6
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
