• 6000328
  • 6000328

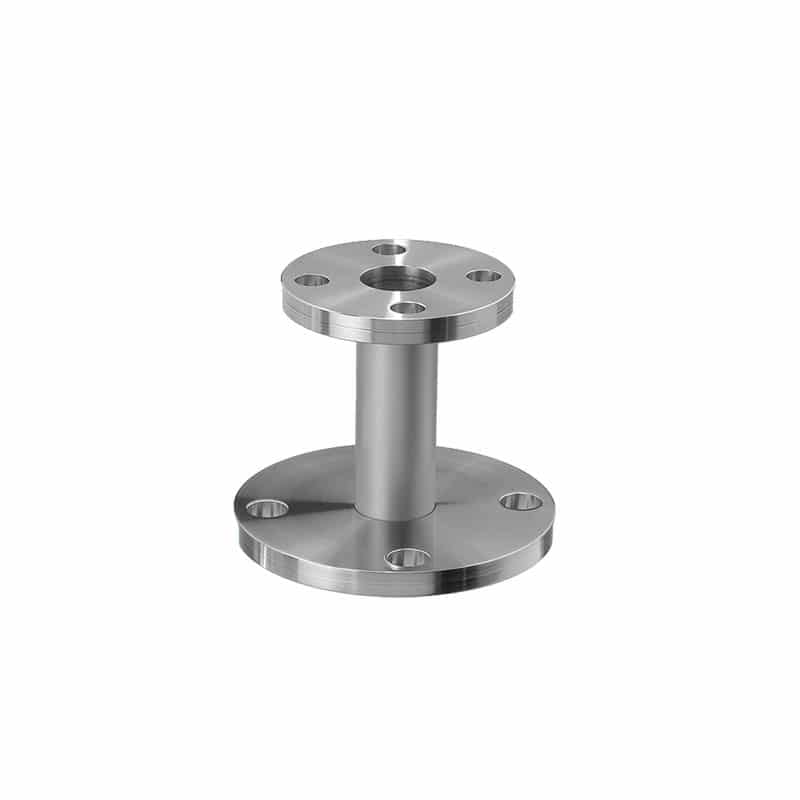

REPRESENTATIVE IMAGE

Attributes

A5
Tube O.D.1.5
Flange 1 O.D.5
Flange 2 O.D.4.25
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA150XASA100-150-N-5.00

ASA150/ASA100 Fixed Reducer Nipple

Part ID: 6000328
$360.15
Standard Lead Time:
Contact
Available on backorder


Reducer nipples have different size flanges (from the same family) on each end. In addition, reducer nipples are manufactured with straight and conical tube sections.
Features
  • Connects different size ASA/ANSI flanges
  • Both flanges have a fixed bolt hole orientation
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00
 Specifications
  •  Flange Material: 304L Stainless Steel
  •  Fitting Material: 304 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A5
Tube O.D.1.5
Flange 1 O.D.5
Flange 2 O.D.4.25
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
