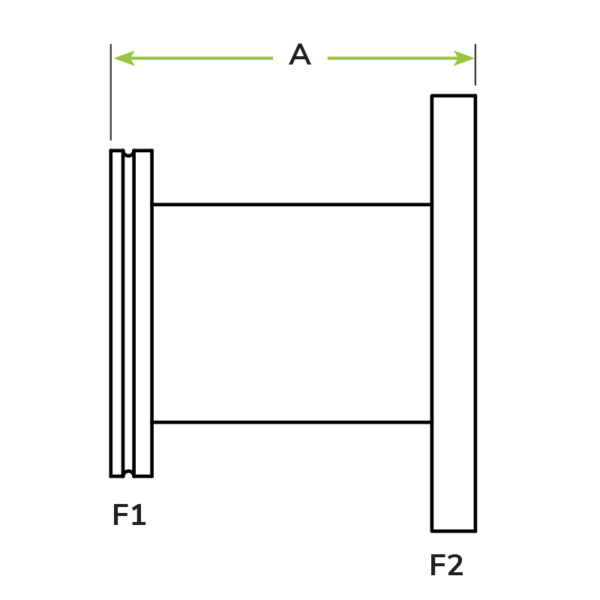

Attributes

A 4.19
Tube O.D. 4
Flange Style 1 LF200
Flange Style 2 300ASA
3D CADLogin
DrawingLogin

LF200XASA300-400-N-4.19

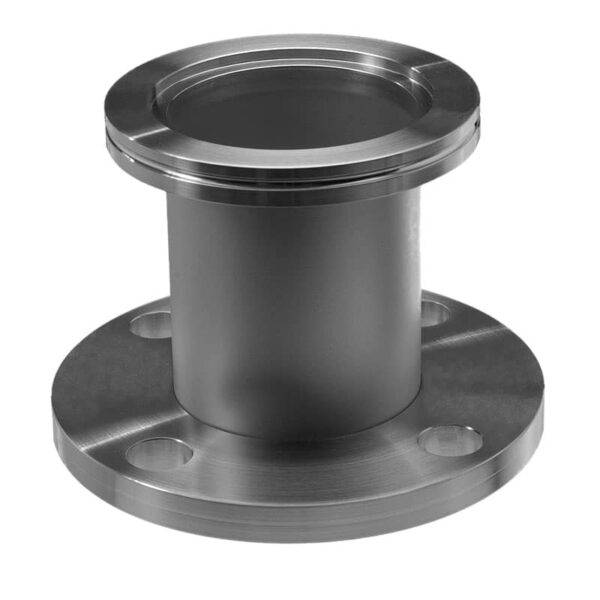

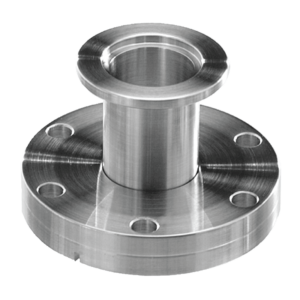

ISO-LF200/ANSI300 Adaptor

$605.00

Part ID: 6000438


Materials:

  • 304 stainless steel



Product Notes:

  • Adapts from LF to ASA/ANSI flanges for the same tubing outer diameter
  • Order ASA/ANSI flanges with or without sealing groove



O-ring Groove Options:

  • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
    • ASA100: $ 20.00
    • ASA150: $ 20.00
    • ASA200: $ 20.00
    • ASA300: $ 35.00
    • ASA400: $ 35.00
    • ASA600: $ 50.00
    • ASA800: $ 55.00
    • ASA1000: $ 60.00



Options: Contact us for price and availability
