100ASA-150-X
ASA100 to ASA150 Fixed Cross
$565.95
Part ID: 6000590

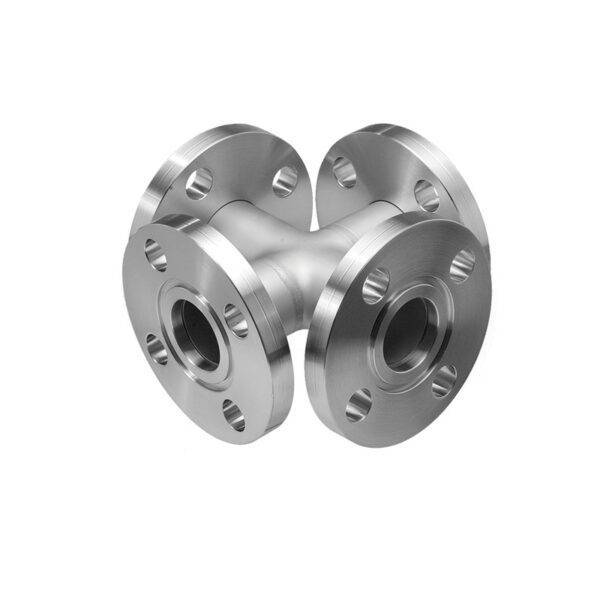

Crosses are manufactured with a flange on each end of an “X” shaped section of tubing. Crosses accommodate junctions or alignment considerations for vacuum system design.
Features
- Pulled ports for optimum vacuum performance
- Flanges have a fixed bolt hole configuration
- O-ring groove available
- ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
- ASA100: $ 20.00
- ASA150: $ 20.00
- ASA200: $ 20.00
- ASA300: $ 35.00
- ASA400: $ 35.00
- ASA600: $ 50.00
- ASA800: $ 55.00
- ASA1000: $ 60.00
- ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
Specifications
- Flange Material: 304L Stainless Steel
- Fitting Material: 304 Stainless Steel
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
All dimensions are in inches unless otherwise specified.
