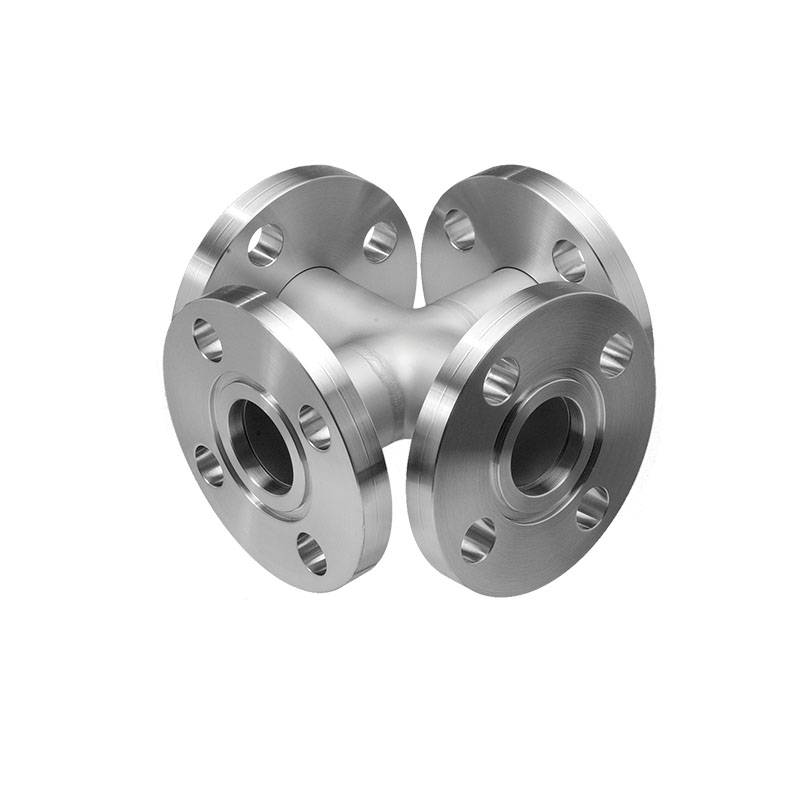

REPRESENTATIVE IMAGE

Attributes

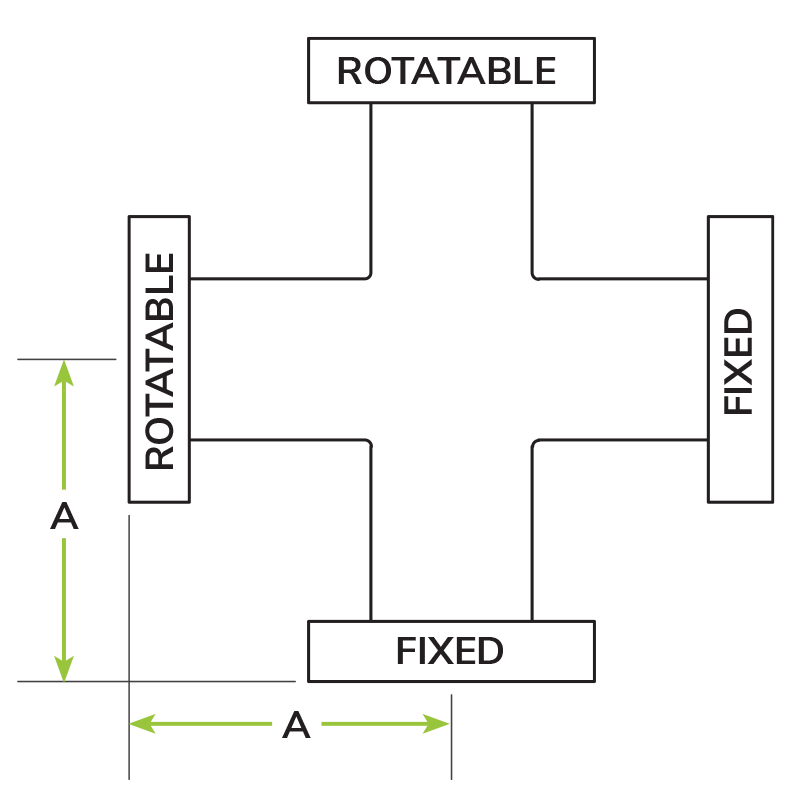

A 3.5
Tube O.D. 3
Flange O.D. 6
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

ASA200-300-4X-3.50

ASA200 to ASA300 Rotatable Cross

$1,204.35

Available on backorder

Part ID: 6000614


Crosses are manufactured with a flange on each end of an “X” shaped section of tubing. Crosses accommodate junctions or alignment considerations for vacuum system design.

Features

  • Pulled ports for optimum vacuum performance
  • One fixed and one rotatable flange per axis
  • O-ring groove available
    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
      • ASA100: $ 20.00
      • ASA150: $ 20.00
      • ASA200: $ 20.00
      • ASA300: $ 35.00
      • ASA400: $ 35.00
      • ASA600: $ 50.00
      • ASA800: $ 55.00
      • ASA1000: $ 60.00

Specifications

  • Flange Material: 304L Stainless Steel
  • Fitting Material: 304 Stainless Steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Attributes

A 3.5
Tube O.D. 3
Flange O.D. 6
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.
