100ASA-150-5X

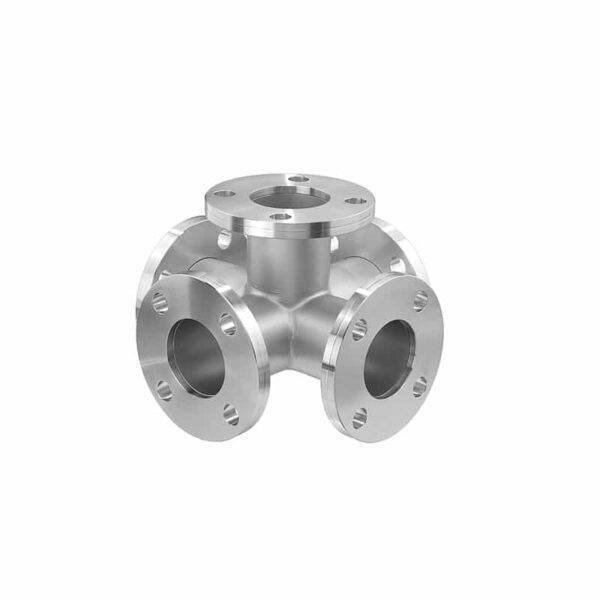

Fixed ASA100 5-Way Cross 1.5 in.

$633.00

Available on backorder

Part ID: 6000624


Crosses are manufactured with a flange on each end of an “X” shaped section of tubing. Crosses accommodate junctions or alignment considerations for vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types. ANCORP manufactures standard crosses in 304 stainless steel, other materials available on request.

Materials

  • Flanges: 304L Stainless Steel
  • Fitting: 304 Stainless Steel

Product Notes

  • Pulled ports for optimum vacuum performance
  • Flanges have a fixed bolt hole orientation
  • Vacuum rated: of 1×10-8 Torr
  • Temperature range of -20°C to 200°C

Options: Contact us for price and availability

  • O-Ring Options:
  • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)
    • ASA100: $ 20.00
    • ASA150: $ 20.00
    • ASA200: $ 20.00
    • ASA300: $ 35.00
    • ASA400: $ 35.00
    • ASA600: $ 50.00
    • ASA800: $ 55.00
    • ASA1000: $ 60.00
