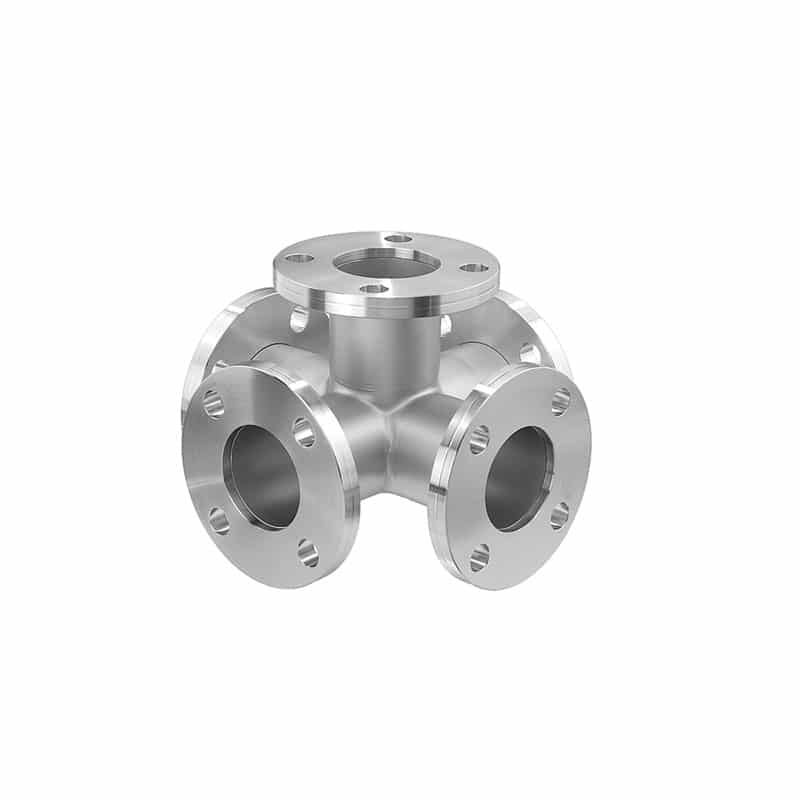

REPRESENTATIVE IMAGE

Attributes

A 5.25
Tube O.D. 6
Flange O.D. 9
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

400ASA-600-5X

Fixed ASA400 5-Way Cross 6 in.

$2,516.29

Available on backorder

Part ID: 6000633









Crosses accommodate junctions or alignment considerations for vacuum system design. Crosses are also used as junction adapters between different tubing sizes or flange types.




Features






  • Pulled ports for optimum vacuum performance
    •

  •  Flanges have a fixed bolt hole orientation
    •

  • Vacuum rated: of 1×10-8 Torr
    •

  •  Temperature range of -20°C to 200°C
    •





  • O-ring groove available



    • ASA/ANSI flanged fittings come standard with a smooth flange face. The addition of an o-ring groove is a custom option. If you require a grooved flange, there is an additional charge. (Please specify the flange in your order notes)



      • ASA100: $ 20.00
        •

      • ASA150: $ 20.00
        •

      • ASA200: $ 20.00
        •

      • ASA300: $ 35.00
        •

      • ASA400: $ 35.00
        •

      • ASA600: $ 50.00
        •

      • ASA800: $ 55.00
        •

      • ASA1000: $ 60.00
        •



      •



    •









 Specifications






  •  Flange Material: 304L Stainless Steel
    •

  •  Fitting Material: 304 Stainless Steel
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 5.25



                    Tube O.D. 6



                    Flange O.D. 9



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
