• 7500001
  • 7500001

REPRESENTATIVE IMAGE

Attributes

A2.5
B3.05
C6.05
Connection1
Trapping MediaCOPPER
3D CADLogin
DrawingLogin

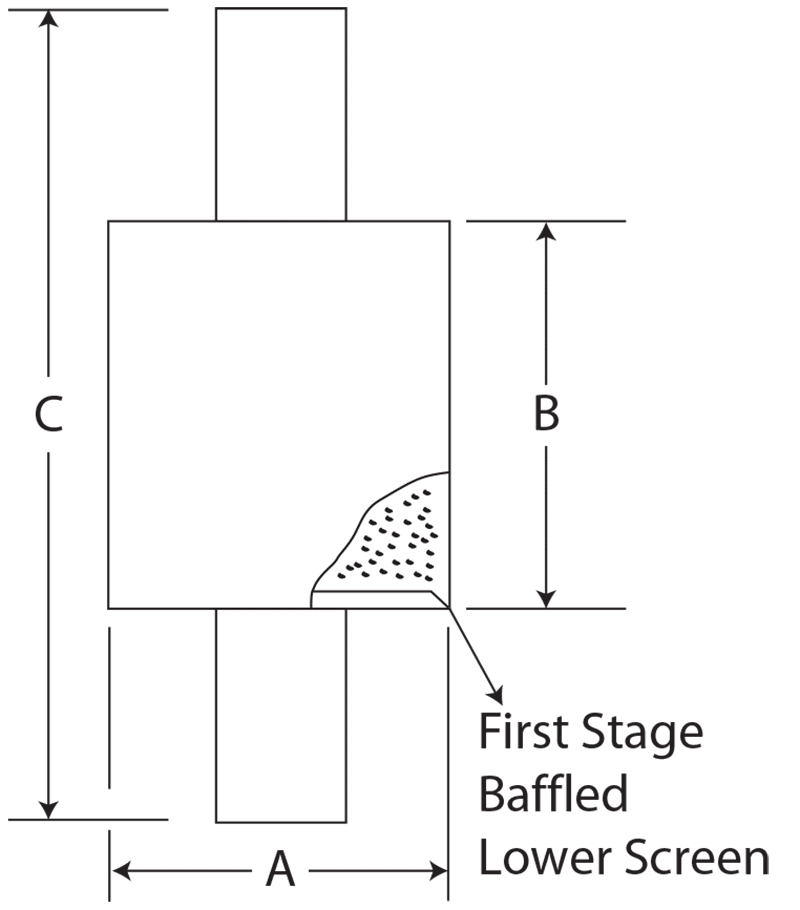

All dimensions are in inches unless otherwise specified.

VSSC-250-100-C

2.5″ Sealed Trap with Copper Media, 1″ Hose Connection

Part ID: 7500031
Request a Quote for Price
Available on backorder
Standard Lead Time:
Contact
The VSSC series fore line traps provide a sealed shield within your vacuum system. They are positioned between the rough vacuum pump and the diffusion pump to prevent back streaming of oil into the diffusion pump. They also protect your pump from contaminants created upstream in your system
Features
  • Trapping mechanics: adsorption
  •  Connection to system: ISO-QF flanges
Specifications
  • Body Material: bead-blasted 304L stainless steel
  • Trapping media: copper or stainless steel

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
A2.5
B3.05
C6.05
Connection1
Trapping MediaCOPPER
3D CADLogin
DrawingLogin
All dimensions are in inches unless otherwise specified.
