REPRESENTATIVE IMAGE

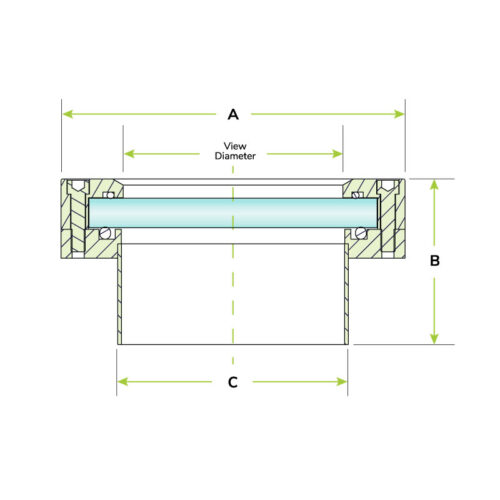

Attributes

A 7.97
B 2.88
C 6
Description 6 in. Weldable Glass Viewport
View Diameter 5.88
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

600-WVP-6.00

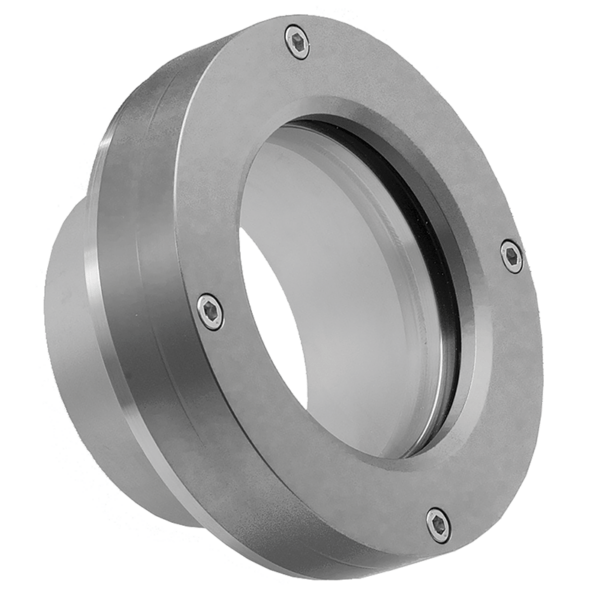

6″ Weldable Glass Viewport

Part ID: 9118002


















$555.00





































			Standard Lead Time:

Contact
















































Available on backorder

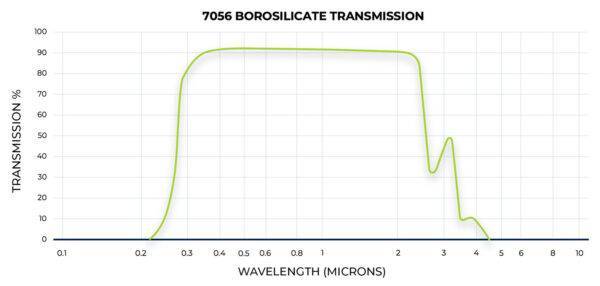

Borosilicate glass windows allow for over 90 percent transmission of light within the visible electromagnetic spectrum (wavelength 400 – 700 nm). The easy to replace port glass ensures continued visibility within your chamber.  The viewing window is held between a pair of sealing fluoroelastomer rings and compressed together by a retaining flange to form a high vacuum (1×10-8 Torr) seal.




Features






  • Vacuum rating of 1×10-8 torr
    •

  •  Maximum temperature: 150°C
    •

  • Avoid thermal changes in excess of 10°C/minute
    •

  • Do not expose to pressure above 1 atmosphere
    •









Specifications






  •  Materials:
    •





  •  Body: 304L Stainless Steel
    •

  •  Seal: FKM
    •

  •  Viewing Window: Borosilicate Glass (Borofloat® 33)
    •

  •  Retaining Flange: Aluminum
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 7.97



                    B 2.88



                    C 6



                    Description 6 in. Weldable Glass Viewport



                    View Diameter 5.88



                    3D CADLogin



                    DrawingLogin





















All dimensions are in inches unless otherwise specified.
