11136-UE24

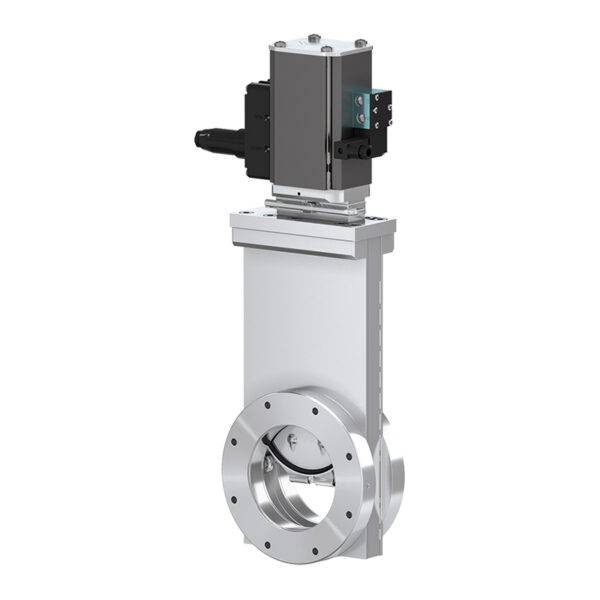

VAT Pneumatic HV Gate Valve with CF450 (DN 63) Ends
$2,172.00
Available on backorder
Part ID: VAT0006
VAT’s Series 111 HV Gate Valve is a general purpose valve for demanding applications under various process conditions. The pneumatic design features a 3-position double acting actuator.
Main Features
- Sizes: DN 63–320 mm (2.5″–12″)
- Actuator: 3-Position-Pneumatic Double Acting
- Body material: stainless steel
- Feedthrough: bellows
- Standard flanges: ISO-LFB (ISO-F), CF (fixed)
- Sealing technology: VATLOCK
Technical Data
- Leak rate (valve body, valve seat): < 1×10-9 mbar ls-1
- Pressure range:
- DN 63–200: 1×10-8 mbar to 1.6 bar (abs)
- DN 250–320: 1×10-8 mbar to 1.2 bar (abs)
- Differential pressure on the gate:
- DN 63–200: ≤ 1.6 bar
- DN 250–320: ≤ 1.2 bar
- Differential pressure at opening: ≤ 30 mbar
- Cycles until first service: 200,000
- Temperature:
- Valve body: ≤ 150°C
- Manual and pneumatic actuator: ≤ 80°C
- Solenoid valve: ≤ 50°C
- Position indicator: ≤ 50°C
- Heating and cooling rate: ≤ 50°C h-1
- Material:
- Valve body: AISI 304 (1.4301)
- Mechanism:
- DN 63–200: AISI 316L (1.4404)
- DN 250–320: AISI 304 (1.4301)
- Bellows: AISI 633 (AM350)
- Seal (bonnet, gate): FKM (Viton™)
- Mounting position: Any
- Valve position indication: visual (mechanical)
Accordion #1
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Accordion #2
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Attributes
All dimensions are in inches unless otherwise specified.
