• VAT11036-PE01
  • VAT11036-PE01

REPRESENTATIVE IMAGE

Attributes

Size (in) 10
Size (mm) 250
Flange Ends CF1200-Metric
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

11148-CE01

VAT Manual HV Gate Valve with CF1200 (DN 250)-Metric Ends

$7,737.00

Available on backorder

Part ID: VAT0031









VAT’s Series 111 HV Gate Valve is a general purpose valve for demanding applications under various process conditions. The manual design features a crank handle actuator for easy opening and closing.






Main Features






  • Sizes: DN 63–320 mm (2.5″–12″)
    •

  • Actuator: manual with crank handle
    •

  • Body material: stainless steel
    •

  • Feedthrough: bellows
    •

  • Standard flanges: ISO-LFB (ISO-F), CF (fixed)
    •

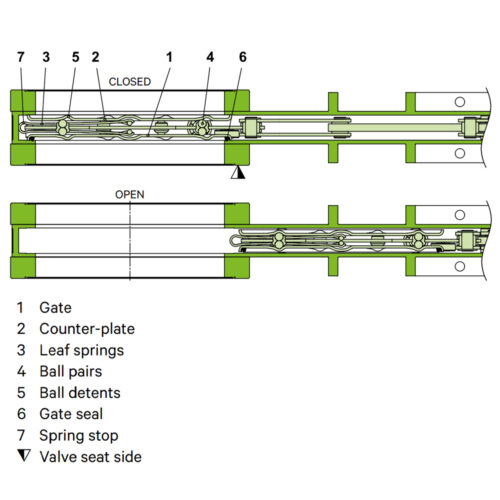

  • Sealing technology: VATLOCK
    •













Technical Data






  • Leak rate (valve body, valve seat): < 1×10-9 mbar ls-1
    •

  • Pressure range:



    • DN 63–200: 1×10-8 mbar to 1.6 bar (abs)
      •

    • DN 250–320: 1×10-8 mbar to 1.2 bar (abs)
      •



    •

  • Differential pressure on the gate:



    • DN 63–200: ≤ 1.6 bar
      •

    • DN 250–320: ≤ 1.2 bar
      •



    •

  • Differential pressure at opening: ≤ 30 mbar
    •

  • Cycles until first service: 200,000
    •

  • Temperature:



    • Valve body: ≤ 150°C
      •

    • Manual and pneumatic actuator: ≤ 80°C
      •

    • Solenoid valve: ≤ 50°C
      •

    • Position indicator: ≤ 50°C
      •



    •

  • Heating and cooling rate: ≤ 50°C h-1
    •

  • Material:



    • Valve body: AISI 304 (1.4301)
      •

    • Mechanism:



      • DN 63–200: AISI 316L (1.4404)
        •

      • DN 250–320: AISI 304 (1.4301)
        •



      •

    • Bellows: AISI 633 (AM350)
      •



    •

  • Seal (bonnet, gate): FKM (Viton™)
    •

  • Mounting position: Any
    •

  • Valve position indication: visual (mechanical)
    •
