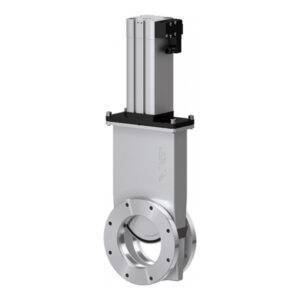

REPRESENTATIVE IMAGE

Attributes

Size (in) DN 160 (6")
Material Stainless steel
Actuator Pneumatic, double acting
Position Indicator Signal Yes
Solenoid Valve Yes
Flange CF-F fixed flange metric thread
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VAT09144-CE44

6″ (DN 160) SS HV GATE VALVE W/ WEDGE DESIGN CF800TM PNEUMATIC AIR TO AIR/ DOUBLE ACTING W/ POSITION INDICATION W/ SOLENOID

Request a Quote for Price

Available on backorder

Part ID: VAT09144-CE44


VAT Series 091 Pneumatic High Vacuum Gate Valve with Wedge Design is a unique gate valve with self-cleaning properties for gas flows with a high proportion of byproduct with potential to cause buildup and undesired deposits. The pneumatic design features a double-acting actuator.

 Main Features

  • Sizes: DN 50–200 mm (2″–8″)
  • Actuator: pneumatic double-acting
  • Body material: stainless steel
  • Feedthrough: bellows
  • Standard flanges: ISO-KF, ISO-F, CF-F, ASA-LP, JIS

Technical Data

Leak Rate

  • Valve Body: < 1 × 10-9 mbar ls-1
  • Valve Seat: < 1 × 10-7 mbar ls-1

Pressure Range

  • 1 × 10-8 mbar to 1.2 bar (abs)

Differential Pressure

  • On the Gate: ≤ 1.2 bar
  • At Opening: ≤ 1 bar

Cycles Until First Service: 5000

Temperature

  • Valve Body: ≤ 180 °C
  • Actuator: ≤ 100 °C
  • Solenoid Valve: ≤ 70 °C
  • Position Indicator: ≤ 80 °C

Material:

  • Valve Body, Gate: AISI 304 (1.4301)
  • Bellows: AISI 633 (AM350)

Seal: Bonnet and Gate – FKM (Viton®)
Mounting Position: Any

Contact Rating

  • Voltage: ≤ 24 VAC/DC
  • Current: ≤ 0.5 A
  • Power: max. 10 W
