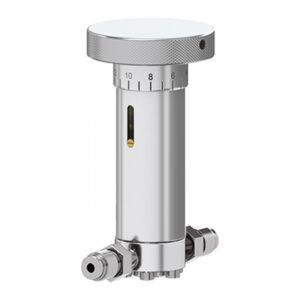

REPRESENTATIVE IMAGE

Attributes

Size (in) DN 16 (⅝")
Material Stainless steel
Actuator Manual, hand wheel
Position Indicator Signal No
Solenoid Valve No
Flange CF Rotatable Flange
3D CADLogin
DrawingLogin
Port Orientation Angled
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

VAT59024-GE01

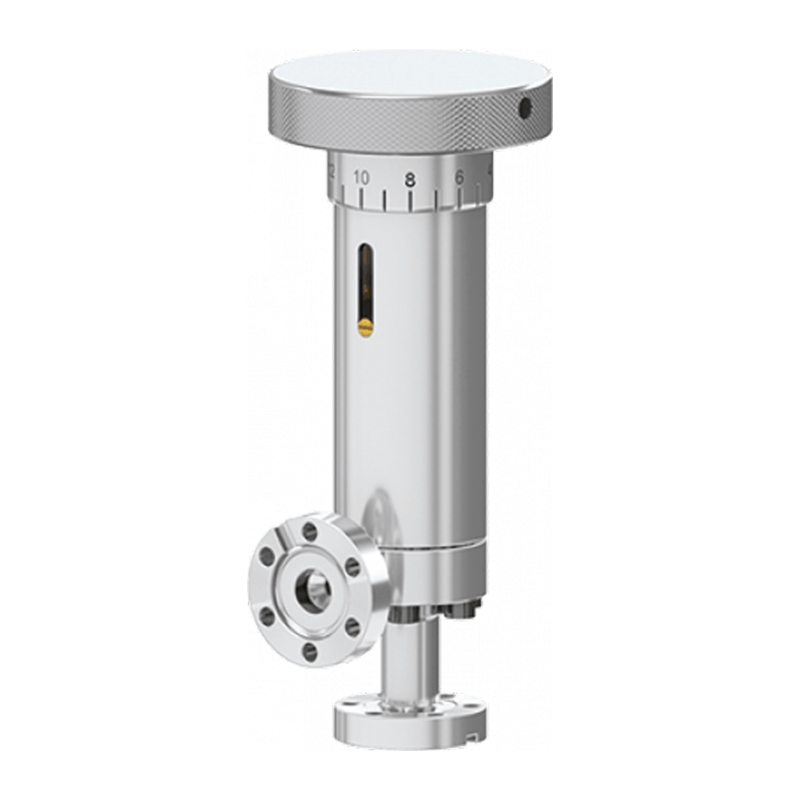

⅝” (DN 16) SS ALL METAL LEAK VALVE CF133R MANUAL HAND WHEEL

$1,789.00

Available on backorder

Part ID: VAT59024-GE01


Used for the precise control of very small gas flows, the 59.0 series All-Metal Manual Leak Valve offers ultra-high and extremely high vacuum users enhanced process control and precise reproducibility of flow settings.

Main Features

  • Sizes: DN 16 mm (5/8″)
  • Actuator: manual with handwheel
  • Body material: stainless steel
  • Standard flanges: CF-R
  • Port orientation: Angled
  • Sealing technology: diaphragm sealing/”hard on hard”

Technical Data

Leak Rate

  • Valve Body and Valve Seat: < 1 × 10-10 mbar ls-1

Pressure Range

  • UHV to 10 bar (abs)

Differential Pressure at Opening: ≤ 10 bar

Dead Volume

  • Angle Valve
    • Seat Side: 2.7 cm3
    • Side Port: 1.1 cm3
  • Inline Valve
    • Seat Side: 0.98 cm3
    • Side Port: 1.01 cm3

Cycles Until First Service: 20,000

Bake-Out Temperature

  • Valve Body: ≤ 300 °C
  • Manual Actuator: ≤ 300 °C

Heating and Cooling Rate: ≤ 60 °C h-1

Material

  • Valve Body: AISI 660 (1.4943), AISI 316L (1.4404)
  • Diaphragm: AISI 301 (1.4310), gold-plated

Mounting Position: Any

Valve Position Indication: Visual (Mechanical)

Conductance (Molecular Flow): 0.05 ls-1

Adjustable Gas Flow: 1 × 10-10 mbar ls-1 to 500 mbar ls-1
