Vacuum Fitting Guide: Space-Saving Solutions for Port Connections

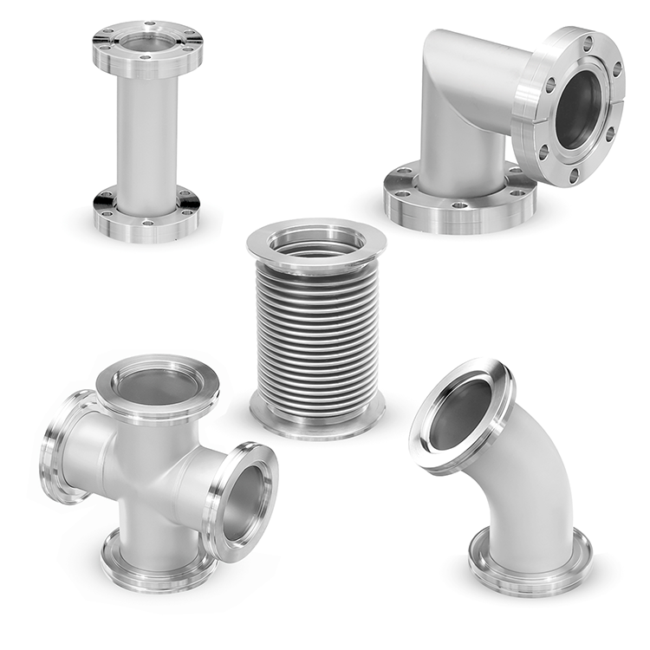

Assortment of vacuum fittings Introduction Designing a vacuum system rarely ends at the chamber wall. After pumps, gauges, and instrumentation are specified, the practical challenge becomes integration: routing lines through confined spaces, maintaining centerline alignment, and resolving the misalignment that inevitably emerges between concept and installation.   Vacuum fittings enable that integration. They translate layout…
