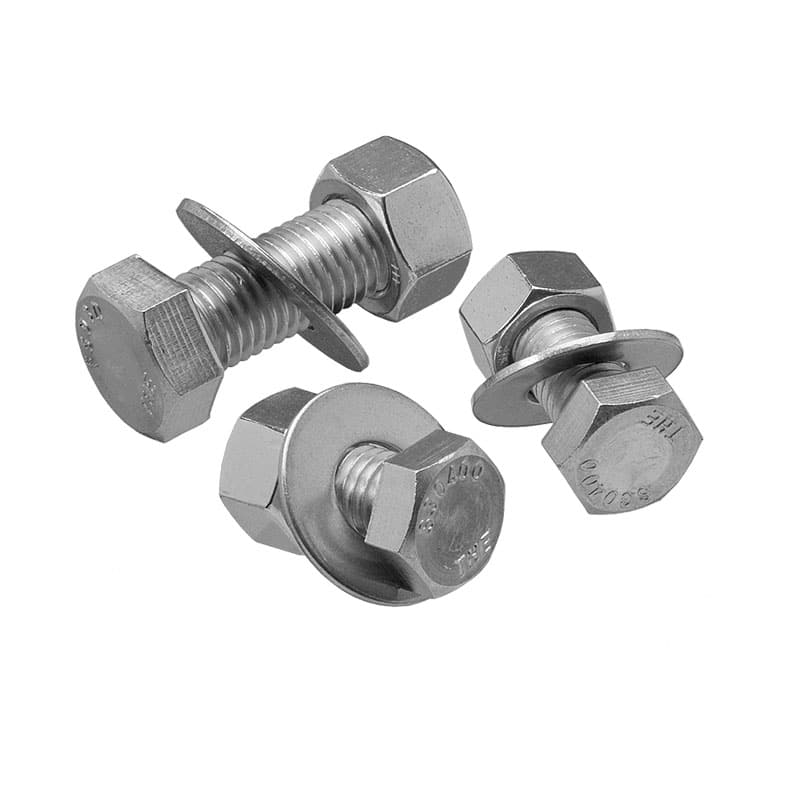

ASA Bolt Kits

These bolt kits fasten two flanges together that have clearance bolt holes. The bolts slide easily though smooth bored bolt holes and are fastened with a nut and washer on the far side of the flange assembly. These bolt kits are offered in the hex-head bolt, nut, and washer kits.



Product Notes:

  • Hex-head bolt, nut and washer are manufactured from stainless steel
  • For use with clearance bolt hole ASA/ANSI flanges

*Dimensions are in inches unless otherwise specified

Part IDReference NumberQuantity Bolt Size Qty / Product 3D CADDrawingUnit PriceQty, Add To Cart
Part ID0606500Reference NumberASA100-HBKQuantity 4Bolt Size 9/16-12 x 1 1/2 in.Qty / Product 3D CADLoginDrawingLoginUnit Price$15.00
Part ID0606501Reference NumberASA150-HBKQuantity 4Bolt Size 9/16-12 x 1 1/2 in.Qty / Product 3D CADLoginDrawingLoginUnit Price$15.00
Part ID0606502Reference NumberASA200-HBKQuantity 4Bolt Size 5/8-11 x 1 1/2 in.Qty / Product 3D CADLoginDrawingLoginUnit Price$18.50
Part ID0606503Reference NumberASA300-HBKQuantity 4Bolt Size 5/8-11 x 1 1/2 in.Qty / Product 3D CADLoginDrawingLoginUnit Price$18.50
Part ID0606504Reference NumberASA400-HBKQuantity 8Bolt Size 5/8-11 x 1 1/2 in.Qty / Product 3D CADLoginDrawingLoginUnit Price$37.00
Part ID0606505Reference NumberASA600-HBKQuantity 8Bolt Size 3/4-10 x 2 1/4 in.Qty / Product 3D CADLoginDrawingLoginUnit Price$46.00
Part ID0606506Reference NumberASA800-HBKQuantity 8Bolt Size 3/4-10 x 2 1/4 in.Qty / Product 3D CADLoginDrawingLoginUnit Price$46.00
Part ID0606507Reference NumberASA1000-HBKQuantity 12Bolt Size 3/4-10 x 2 1/4 in.Qty / Product 3D CADLoginDrawingLoginUnit Price$69.00
