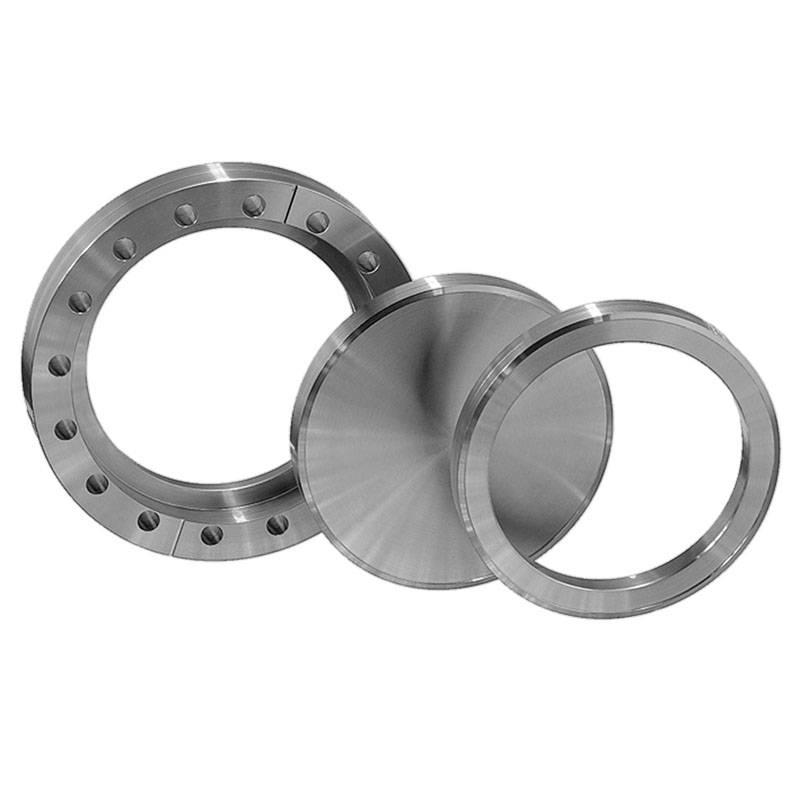

CF600 (6.00 O.D.) Rotatable Flanges

6.00 inch outer diameter ConFlat rotatable flanges ideal for UHV applications.


Materials:

  • 304L stainless steel



Product Notes:

  • Designed to fit standard inch tubing O.D.’s
  • Self-aligning
  • Internal weld
  • Sexless flanges
  • Tapped and clearance (through-hole) bolt holes available
  • Blank flanges close unused ports or custom modify
  • Interchangeable with other ConFlat style flanges
  • Adapters to other flange systems available
  • Vacuum rated: UHV (approx. 1×10-13 Torr)
  • Temperature range: -200°C up to 450°C
  • Leak rating < 1×10-13 std. cc/s helium



Options: Contact us for price and availability

  • Metric tapped flanges
  • Alternative materials: 316LN (flange), 316L stainless steel, aluminum, etc.



*Dimensions are in inches unless otherwise specified

Part IDReference NumberA B C D E F Thrd Flange Style Bolt Hole Style Bolt Hole Number 3D CADDrawingUnit PriceQty, Add To Cart
Part ID5000132Reference NumberCF600R-000A 5.97B -C -D 0.84E -F 5.128Thrd 0.332Flange Style RotatableBolt Hole Style ClearanceBolt Hole Number 163D CADLoginDrawingLoginUnit Price$99.00
Part ID5000133Reference NumberCF600R-400A 5.97B 3.81C 4.01D 0.84E 0.437F 5.128Thrd 0.332Flange Style RotatableBolt Hole Style ClearanceBolt Hole Number 163D CADLoginDrawingLoginUnit Price$99.00
Part ID5000134Reference NumberCF600RT-000A 5.97B -C -D 0.84E -F 5.128Thrd 5/16-24Flange Style RotatableBolt Hole Style TappedBolt Hole Number 163D CADLoginDrawingLoginUnit Price$122.00
Part ID5000135Reference NumberCF600RT-400A 5.97B 3.81C 4.01D 0.84E 0.437F 5.128Thrd 5/16-24Flange Style RotatableBolt Hole Style TappedBolt Hole Number 163D CADLoginDrawingLoginUnit Price$122.00
