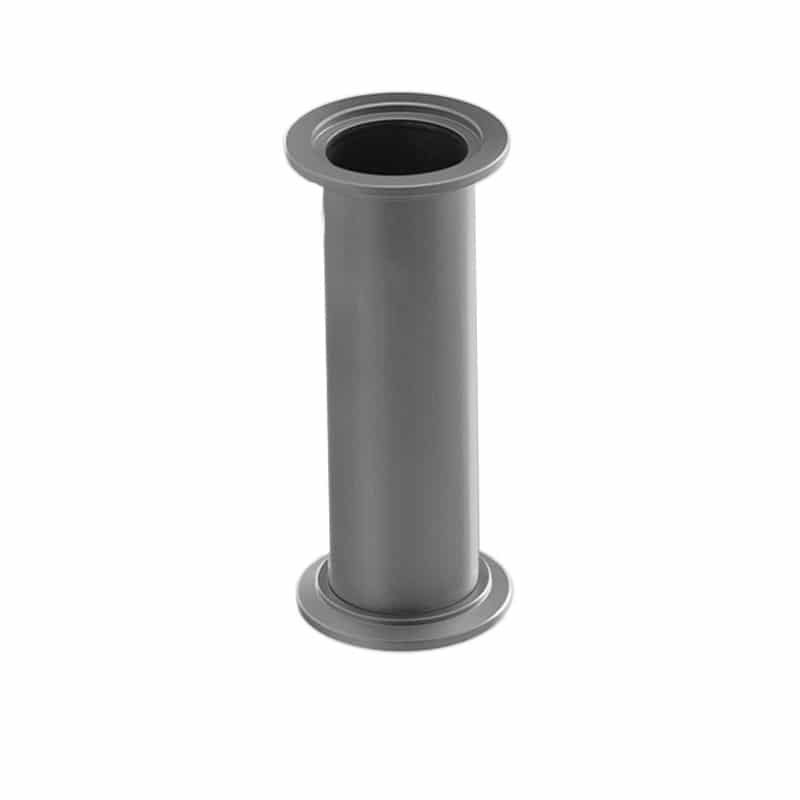

ISO-QF (KF) Nipple
Nipples are used to create a weld free straight connection within a vacuum system. They are also used as straight adapters between different tubing sizes or flange types.
Features
- High Vacuum Rated to 1×10-8 Torr
- Bakeable to 200°C
- Compatible with all ISO standard vacuum flanges and fittings
- Quick sealing and disassembly
Materials
- Standard: 304 Stainless Steel
- Alternative: 6061 Aluminum (Contact us for price and delivery)
Options (Contact us for price and delivery)
- Custom lengths
- Custom flange combinations
- ISO-QF large size flanges
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | A | Material | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 4000408 | Reference Number | QF16-075-N-12.60 | A | 12.6 | Material | 304 SST | 3D CAD | Login | Drawing | Login | Unit Price | $53.50 | Contact | |
| Part ID | 4000409 | Reference Number | QF16-075-N-12.60-AL | A | 12.6 | Material | Aluminum | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | Contact | |
| Part ID | 4000406 | Reference Number | QF16-075-N-3.15 | A | 3.15 | Material | 304 SST | 3D CAD | Login | Drawing | Login | Unit Price | $45.00 | Contact | |
| Part ID | 4000412 | Reference Number | QF25-100-N-12.60 | A | 12.6 | Material | 304 SST | 3D CAD | Login | Drawing | Login | Unit Price | $65.00 | Contact | |
| Part ID | 4000410 | Reference Number | QF25-100-N-3.94 | A | 3.94 | Material | 304 SST | 3D CAD | Login | Drawing | Login | Unit Price | $50.00 | Contact | |
| Part ID | 4000413 | Reference Number | QF25-100-N-12.60-AL | A | 12.6 | Material | Aluminum | 3D CAD | Login | Drawing | Login | Unit Price | Request a Quote | Contact | |
| Part ID | 4000414 | Reference Number | QF40-150-N-5.12 | A | 5.12 | Material | 304 SST | 3D CAD | Login | Drawing | Login | Unit Price | $63.15 | Contact | |
| Part ID | 4000416 | Reference Number | QF40-150-N-12.60 | A | 12.6 | Material | 304 SST | 3D CAD | Login | Drawing | Login | Unit Price | $79.00 | Contact | |
| Part ID | 4000420 | Reference Number | QF50-200-N-12.60 | A | 12.6 | Material | 304 SST | 3D CAD | Login | Drawing | Login | Unit Price | $89.00 | Contact | |
| Part ID | 4000418 | Reference Number | QF50-200-N-5.51 | A | 5.51 | Material | 304 SST | 3D CAD | Login | Drawing | Login | Unit Price | $77.70 | Contact |
