Multipin Feedthroughs

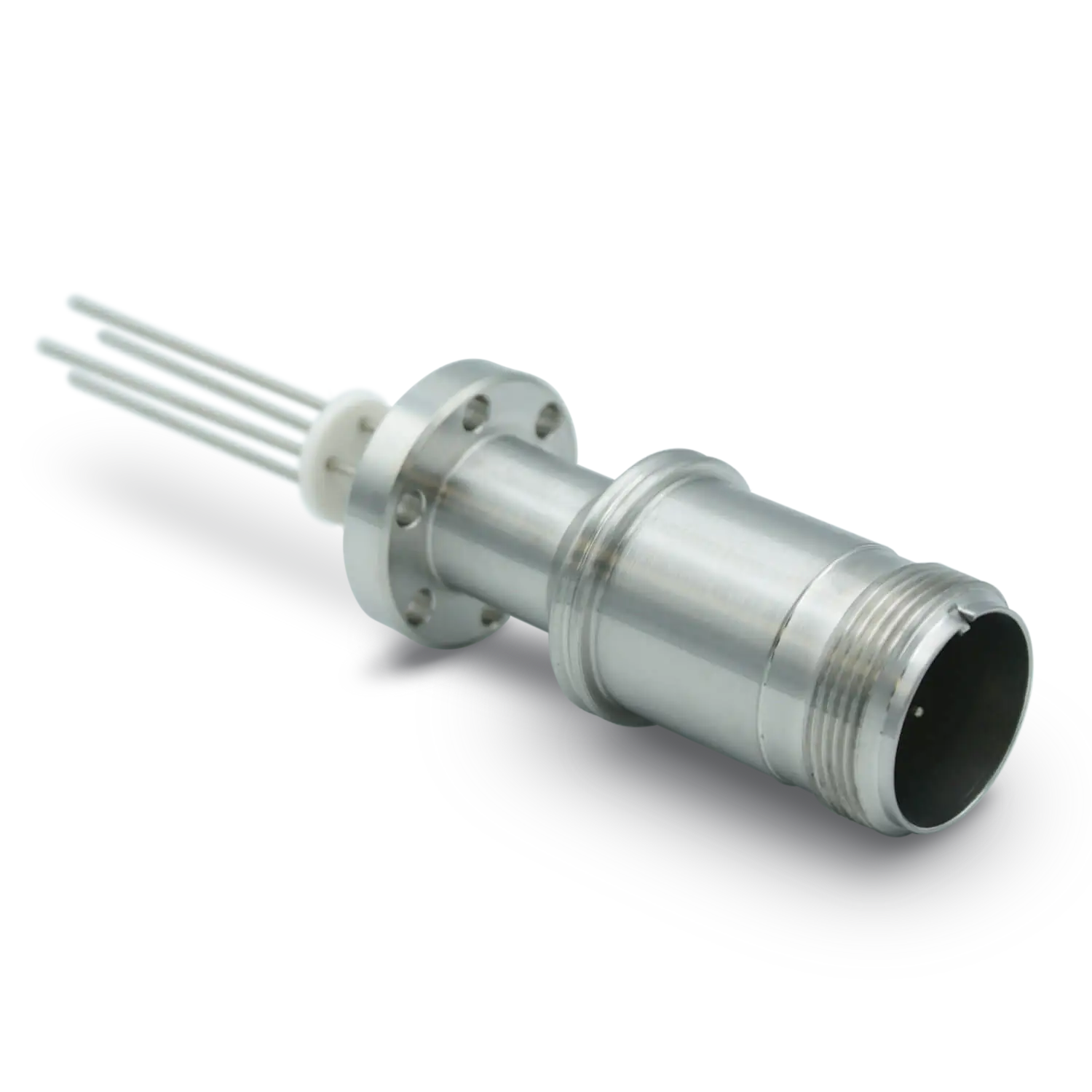

Multipin feedthroughs route many independent conductors through a single vacuum port in HV and UHV systems, saving flange real estate without sacrificing vacuum integrity. ANCORP offers threaded MIL-C-5015 circular connectors (4–10 pins, 700 V, 10 A per pin) and compact, high-density MIL-C-26482 connectors (up to 32 pins, 1 kV, 3 A per pin), in single- or double-ended builds on ConFlat and KF flanges. Ideal for power, signal, and instrumentation pass-through in research and semiconductor systems.
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | Feedthrough Type | Connector Interface | Configuration | Pin Count | Voltage | Current | Flange Type | Flange Size | Vacuum Range | 3D CAD | Unit Price | In Stock | Qty, Add To Cart | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 2100140 | Reference Number | CF133XMP-FTEC-4P-700V-10A | Feedthrough Type | Multipin | Connector Interface | Circular, Threaded (MIL-C-5015) | Configuration | Single-Ended | Pin Count | 4 | Voltage | 700 V | Current | 10 A/pin | Flange Type | ConFlat | Flange Size | 1.33 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $176.00 | Contact | |
| Part ID | 2100141 | Reference Number | CF275XMP-FTEC-4P-700V-10A | Feedthrough Type | Multipin | Connector Interface | Circular, Threaded (MIL-C-5015) | Configuration | Single-Ended | Pin Count | 4 | Voltage | 700 V | Current | 10 A/pin | Flange Type | ConFlat | Flange Size | 2.75 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $188.00 | Contact | |
| Part ID | 2100142 | Reference Number | CF275XMP-FTEC-10P-700V-10A | Feedthrough Type | Multipin | Connector Interface | Circular, Threaded (MIL-C-5015) | Configuration | Single-Ended | Pin Count | 10 | Voltage | 700 V | Current | 10 A/pin | Flange Type | ConFlat | Flange Size | 2.75 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $316.00 | Contact | |
| Part ID | 2100143 | Reference Number | CF275DXMPC-FTEC-32P-1000V-3A | Feedthrough Type | Multipin | Connector Interface | Circular (MIL-C-26482) | Configuration | Double-Ended | Pin Count | 32 | Voltage | 1 kV | Current | 3 A/pin | Flange Type | ConFlat | Flange Size | 2.75 | Vacuum Range | 1x10-10 Torr | 3D CAD | Login | Unit Price | $578.00 | Contact | |
| Part ID | 2100144 | Reference Number | QF16XMP-FTEC-4P-700V-10A | Feedthrough Type | Multipin | Connector Interface | Circular, Threaded (MIL-C-5015) | Configuration | Single-Ended | Pin Count | 4 | Voltage | 700 V | Current | 10 A/pin | Flange Type | KF16 (QF16) | Flange Size | 1.18 | Vacuum Range | 1x10-8 Torr | 3D CAD | Login | Unit Price | $169.00 | Contact | |
| Part ID | 2100145 | Reference Number | QF40XMP-FTEC-4P-700V-10A | Feedthrough Type | Multipin | Connector Interface | Circular, Threaded (MIL-C-5015) | Configuration | Single-Ended | Pin Count | 4 | Voltage | 700 V | Current | 10 A/pin | Flange Type | KF40 (QF40) | Flange Size | 2.16 | Vacuum Range | 1x10-8 Torr | 3D CAD | Login | Unit Price | $175.00 | Contact | |
| Part ID | 2100146 | Reference Number | QF40XMP-FTEC-10P-700V-10A | Feedthrough Type | Multipin | Connector Interface | Circular, Threaded (MIL-C-5015) | Configuration | Single-Ended | Pin Count | 10 | Voltage | 700 V | Current | 10 A/pin | Flange Type | KF40 (QF40) | Flange Size | 2.16 | Vacuum Range | 1x10-8 Torr | 3D CAD | Login | Unit Price | $296.00 | Contact | |
| Part ID | 2100147 | Reference Number | QF40DXMPC-FTEC-32P-1000V-3A | Feedthrough Type | Multipin | Connector Interface | Circular (MIL-C-26482) | Configuration | Double-Ended | Pin Count | 32 | Voltage | 1 kV | Current | 3 A/pin | Flange Type | Kf40 (QF40) | Flange Size | 2.16 | Vacuum Range | 1x10-8 Torr | 3D CAD | Login | Unit Price | $576.00 | Contact |
