Feedthrough Type Multipin
Connector Interface Circular (MIL-C-26482)
Configuration Double-Ended
Pin Count 32
Voltage 1 kV
Current 3 A/pin
Flange Type Kf40 (QF40)
Flange Size 2.16
Vacuum Range 1x10-8 Torr
3D CADLogin

All dimensions are in inches unless otherwise specified.

QF40DXMPC-FTEC-32P-1000V-3A

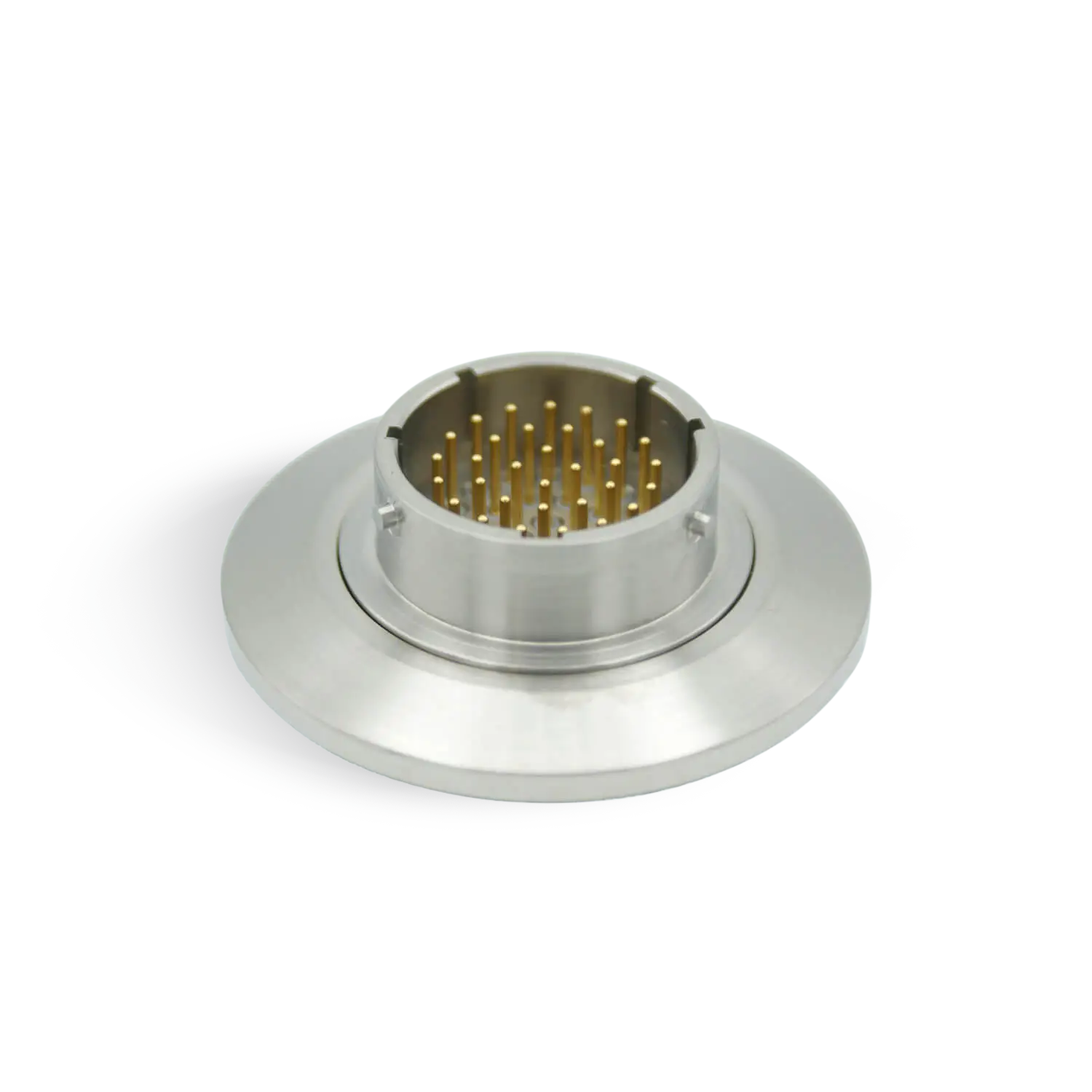

MS Circular Connector Series Multipin Feedthrough, 32 Pins, 1 kV, 3 Amps/Pin, Double-Ended w/ Atmosphere & Vacuum-Side Connectors, KF40 / QF40 (2.16″) Flange

Part ID: 2100147


















$576.00





































			Standard Lead Time

Contact
















































Available on backorder


















































Multipin electrical feedthroughs route multiple independent conductors through a single vacuum boundary while maintaining vacuum integrity in HV and UHV systems. Featuring a compact, high-density MIL-C-26482 design, a 32-pin double-ended configuration with both atmosphere- and vacuum-side connectors rated to 1 kV and 3 A per pin, and a KF40 (2.16″) flange, they are ideal for dense instrumentation and signal pass-through in research, semiconductor, and vacuum coating applications.




Features






  • Compact, high-pin density design with circular connectors (per MIL-C-26482)
    •

  • Double-ended — atmosphere- and vacuum-side mating connectors included
    •

  • Up to 32 conductors through a single port
    •

  • Pins individually rated for dense signal and instrumentation routing
    •

  • UHV-rated construction
    •

  • Feedthrough bakeable to 450°C (vacuum-side connector to 250°C)
    •









Specifications






  • Conductor Material: Gold-plated stainless steel
    •

  • Conductor Diameter: N/A
    •

  • Flange Material: 304 Stainless Steel
    •

  • Temperature Rating: -269°C to 450°C (without connector or O-ring)
    •

  • Leak Rate: < 1×10-9 atm•cc/sec He
    •
