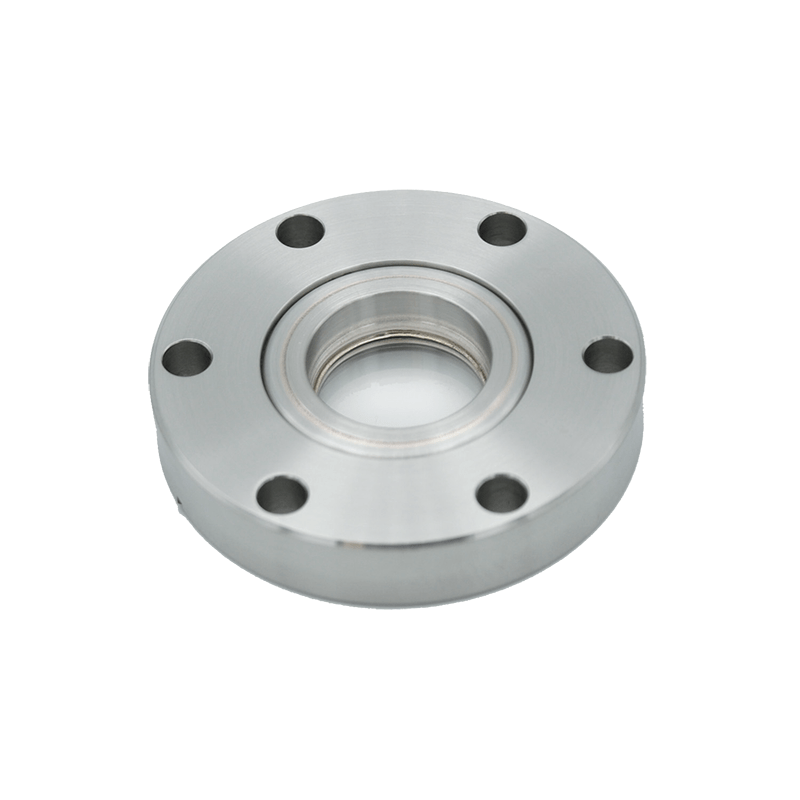

ConFlat (CF) UV Grade Sapphire Viewport
Sapphire has a broad transmission range from UV to near-infrared (NIR) and is excellent in harsh environments and high temperatures. Sapphire is durable, scratch resistant, birefringent, and has a low coefficient of thermal expansion.
Description
- Single crystal UV grade sapphire window
- ConFlat (CF) Flange
- Bakeable to 450˚C
- Temperature minimum of -100C
- Excellent Transmission from 250nm to 5 microns
- UHV Compatible
Options; Call for price and availability
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | Description | Flange Size | View Diameter | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 9118127 | Reference Number | 338-ZVP-S-0.943 | Description | CF338 UV Grade Sapphire Viewport | Flange Size | 3.38 | View Diameter | 0.94 | 3D CAD | Login | Drawing | Login | Unit Price | $740.00 | Contact | |
| Part ID | 9118128 | Reference Number | CF275-ZLVP-S-UV-0.94 | Description | CF275 UV Grade Sapphire Viewport | Flange Size | 2.75 | View Diameter | 0.94 | 3D CAD | Login | Drawing | Login | Unit Price | $310.00 | Contact | |
| Part ID | 9118130 | Reference Number | CF450-ZLVP-S-UV-1.94 | Description | CF450 UV Grade Sapphire Viewport | Flange Size | 4.5 | View Diameter | 1.94 | 3D CAD | Login | Drawing | Login | Unit Price | $820.00 | 1 | |
| Part ID | 9118132 | Reference Number | CF800-ZLVP-S-2.95 | Description | CF800 UV Grade Sapphire Viewport | Flange Size | 8 | View Diameter | 1.94 | 3D CAD | Login | Drawing | Login | Unit Price | $2,990.00 | Contact |
