REPRESENTATIVE IMAGE

Attributes

Description CF800 UV Grade Sapphire Viewport
Flange Size 8

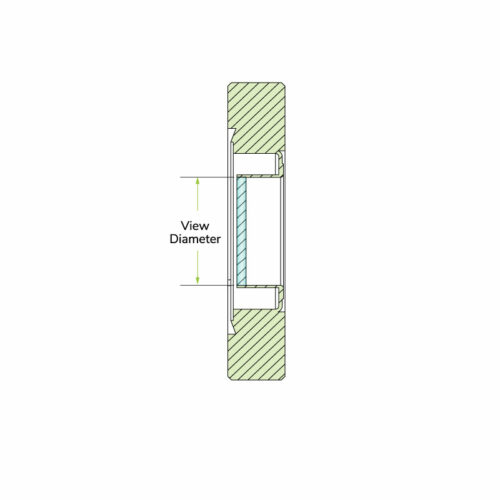

View Diameter 1.94
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

CF800-ZLVP-S-2.95

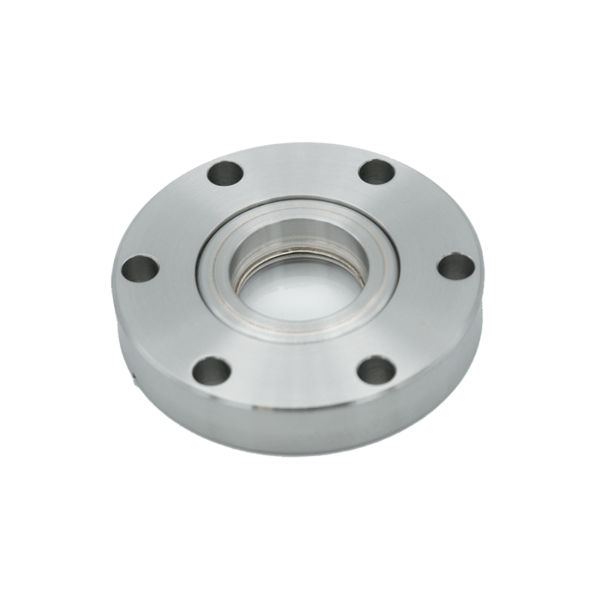

UV Sapphire Viewport with 8.00 in. (DN 160) ConFlat Flange

$2,990.00

Available on backorder

Part ID: 9118132


Sapphire has a broad transmission range from UV to near-infrared (NIR) and is excellent in harsh environments and high temperatures. Sapphire is durable, scratch resistant, birefringent, and has a low coefficient of thermal expansion.

Description

  • Single crystal UV grade sapphire window
  • ConFlat (CF) Flange
  • Bakeable to 450˚C
  • Temperature minimum of -100C
  • Excellent Transmission from 250nm to 5 microns
  • UHV Compatible

Options; Call for price and availability

  • Custom window sizes
  • Alternative Materials: Titanium, 316LN
