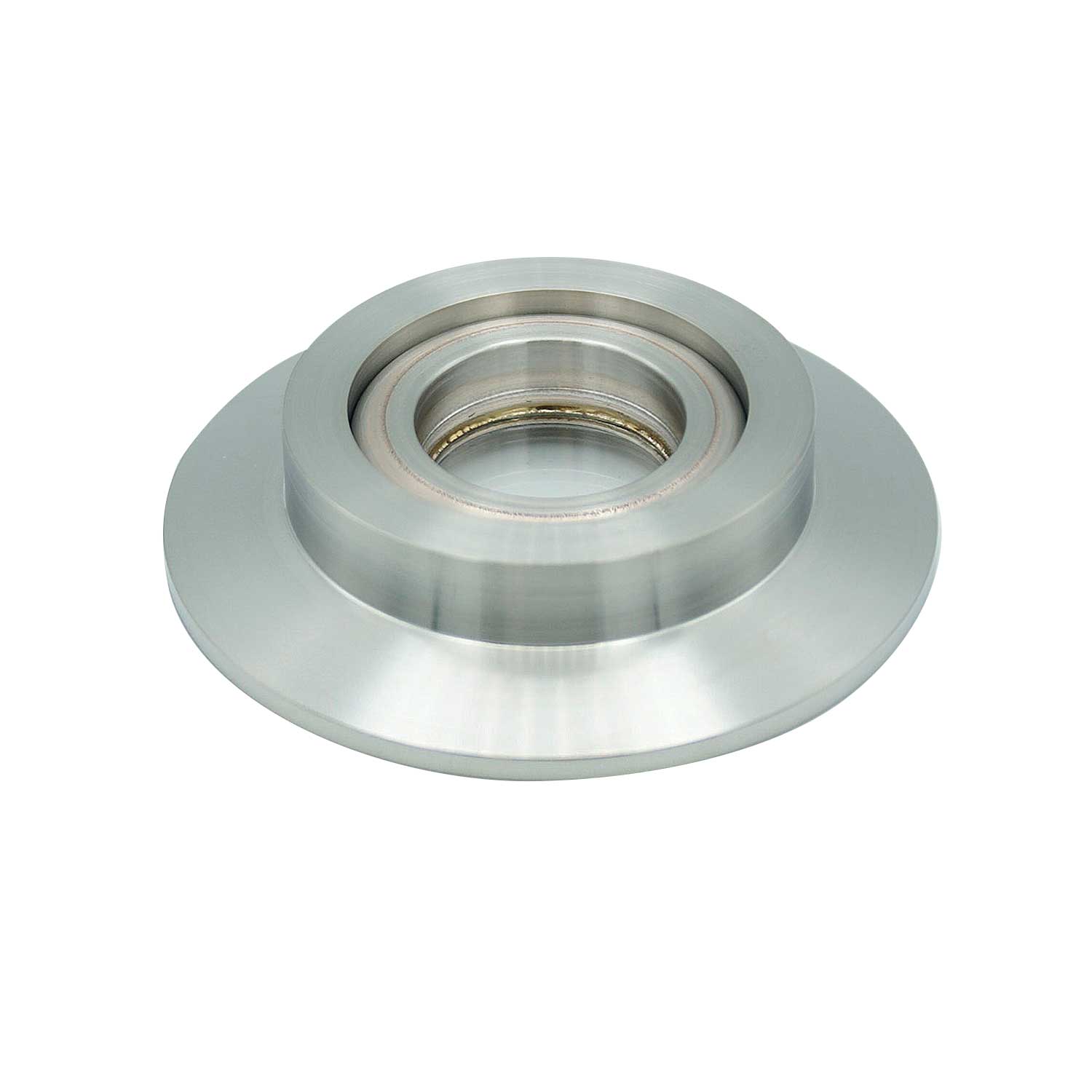

ISO-QF (KF) UV Grade Sapphire Viewport
Description
- UV grade sapphire viewport
- ISO-QF (KF, NW) flange
- Single crystal UV grade sapphire window
- Excellent transmission from 250nm to 5 microns
Specifications
- Window material: UV grade sapphire
- TWD < 8λ @ 632nm (peak to valley)
- Parallelism < 3 arc minutes
- Surface finish: 50/20 scratch-dig
- Thermal range: -100°C to 150°C
- Leak rate < 1 X 10-9 atm-cc/sec He
*Dimensions are in inches unless otherwise specified
| Part ID | Reference Number | Description | Flange Size | View Diameter | 3D CAD | Drawing | Unit Price | In Stock | Qty, Add To Cart | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Part ID | 9110059 | Reference Number | QF25-ZLVP-S-UV-0.60 | Description | QF25 UV Grade Sapphire Viewport | Flange Size | 1.57 | View Diameter | 0.6 | 3D CAD | Login | Drawing | Login | Unit Price | $285.00 | Contact | |
| Part ID | 9110060 | Reference Number | QF40-ZLVP-S-UV-0.94 | Description | QF40 UV Grade Sapphire Viewport | Flange Size | 2.16 | View Diameter | 0.94 | 3D CAD | Login | Drawing | Login | Unit Price | $305.00 | Contact | |
| Part ID | 9110061 | Reference Number | QF50-ZLVP-S-UV-0.94 | Description | QF50 UV Grade Sapphire Viewport | Flange Size | 2.95 | View Diameter | 0.94 | 3D CAD | Login | Drawing | Login | Unit Price | $320.00 | Contact |
