Attributes

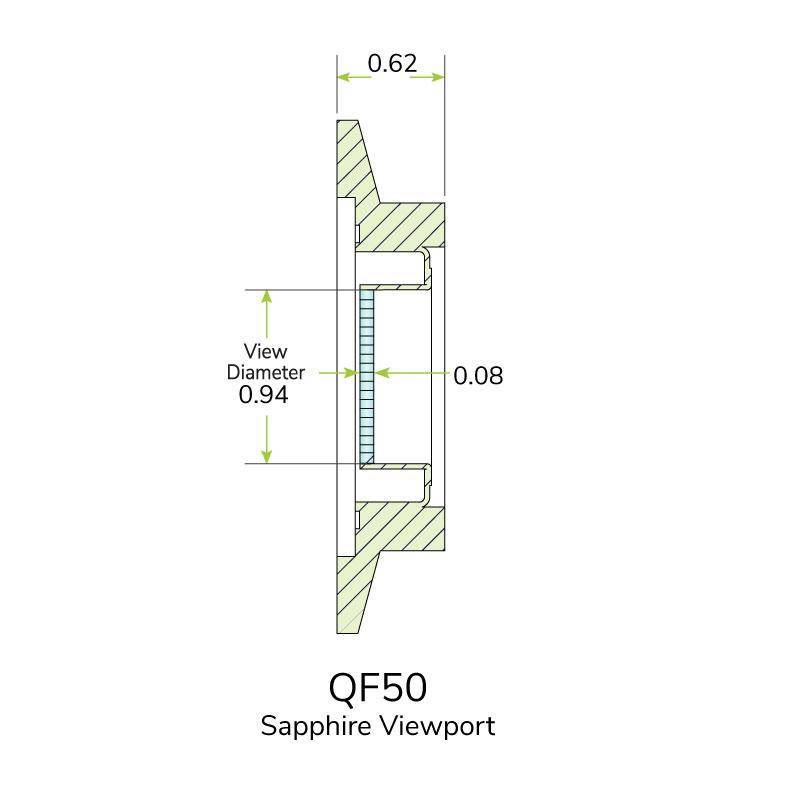

Description QF50 UV Grade Sapphire Viewport
Flange Size 2.95
View Diameter 0.94
3D CADLogin
DrawingLogin

QF50-ZLVP-S-UV-0.94

ISO-QF50 UV Sapphire Viewport

$320.00

Available on backorder

Part ID: 9110061







Description


  • UV grade sapphire viewport
    •
  • ISO-QF (KF, NW) flange
    •
  • Single crystal UV grade sapphire window
    •

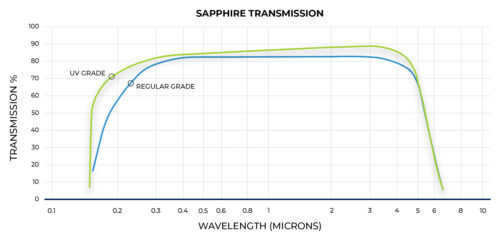

  • Excellent transmission from 250nm to 5 microns
    •



Specifications


  • Window material: UV grade sapphire
    •
  • TWD < 8λ @ 632nm (peak to valley)
    •
  • Parallelism < 3 arc minutes
    •
  • Surface finish: 50/20 scratch-dig
    •
  • Thermal range: -100°C to 450°C
    •
  • Leak rate < 1 X 10-9 atm-cc/sec He
    •
