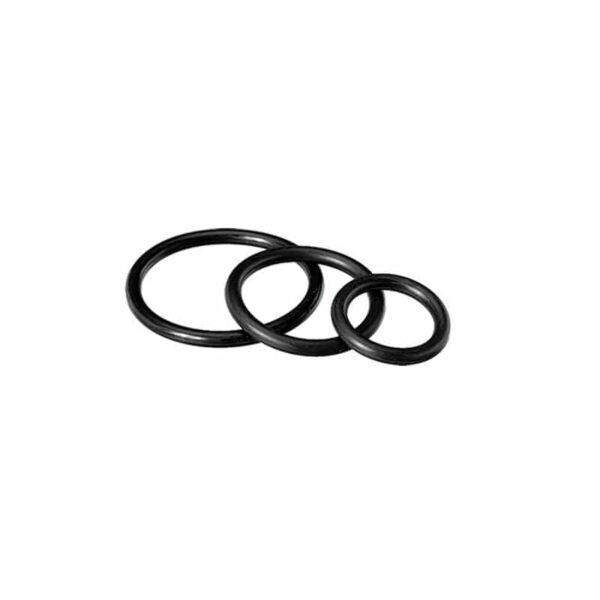

REPRESENTATIVE IMAGE

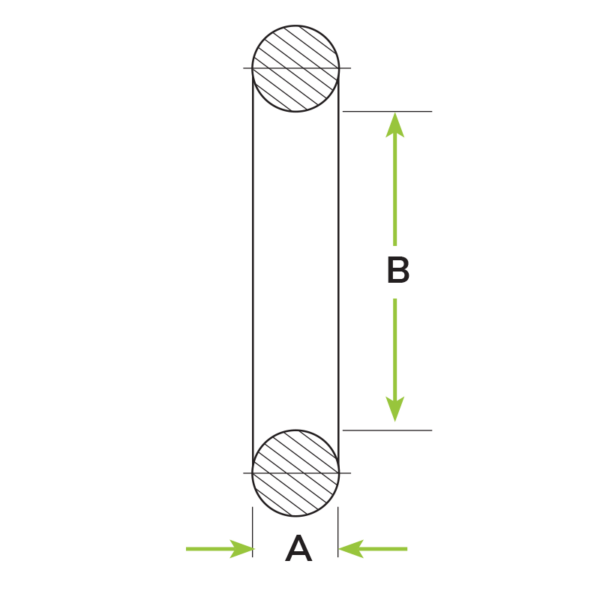

Attributes

A 0.12
B 10
STD Number 2-274

All dimensions are in inches unless otherwise specified.

2-274-OV

Fluorocarbon (FKM) O-ring (10 in.) for ASA800 Flange

Part ID: 0600274


















$15.50



































































15 in stock (can be backordered)


















































The Viton® O-Rings are a vacuum grade fluorocarbon elastomer O-rings that are compressed between the two ASA/ANSI flanges to create a seal capable of achieving high vacuum pressure.




Features






  • Multi-use seal
    •









 Specifications






  •  Pressure range: HV (approx. 1×10-8 Torr)
    •

  •  Temperature range of -70°C to 150°C (intermittent use to 200°C)
    •

  • Fluorocarbon elastomer
    •



























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

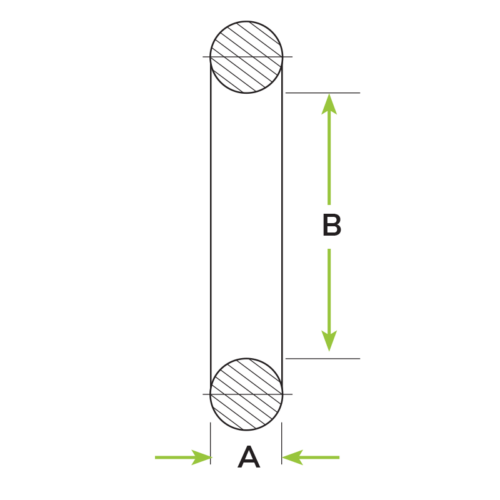

Attributes




















                    A 0.12



                    B 10



                    STD Number 2-274





















All dimensions are in inches unless otherwise specified.
