• 601312
  • 601312

REPRESENTATIVE IMAGE

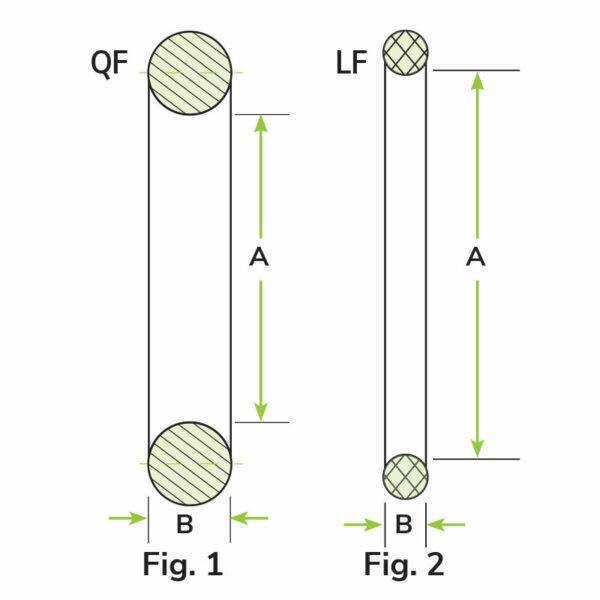

Attributes

A 4.1
B 0.21
Drawing B
O-ring std # 2-346
Seal Material Silicone
Use with Flange LF100
3D CADLogin
DrawingLogin

All dimensions are in inches unless otherwise specified.

2-346-OS

Silicone Replacement Elastomer O-ring (4 1/8 in.) for LF100 Flange

Part ID: 0602346


















$4.50



















































			Standard Lead Time:

Contact
















































Available on backorder



















































Features

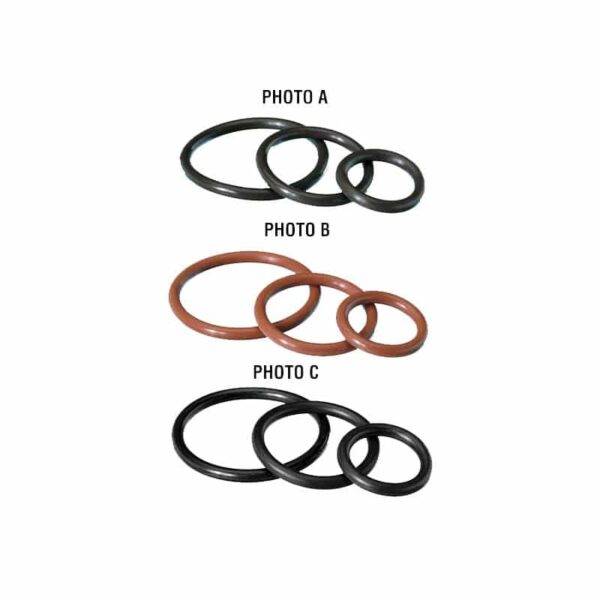

  • Replacement seals for ISO centering rings
    •

  • Buna-N, Silicone, or FKM
    •









 Buna-N






  • Temperature Limits:
    •



    • Low: -20°C
      •

    • Sustained High: 80°C
      •

    • Intermittent Use: 100°C
      •











 Silicone






  • Temperature Limits:
    •



    • Low: -50°C
      •

    • Sustained High: 150°C
      •

    • Intermittent Use: 200°C
      •











 FKM






  • Temperature Limits:
    •



    • Low: -20°C
      •

    • Sustained High: 150°C
      •

    • Intermittent Use: 200°C
      •





























































































































































































Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.







Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.














Attributes




















                    A 4.1



                    B 0.21



                    Drawing B



                    O-ring std # 2-346



                    Seal Material Silicone



                    Use with Flange LF100



                    3D CADLogin







                    DrawingLogin

















All dimensions are in inches unless otherwise specified.
